Double-Acting Pneumatic Cylinder, 100mm Stroke | Aignep

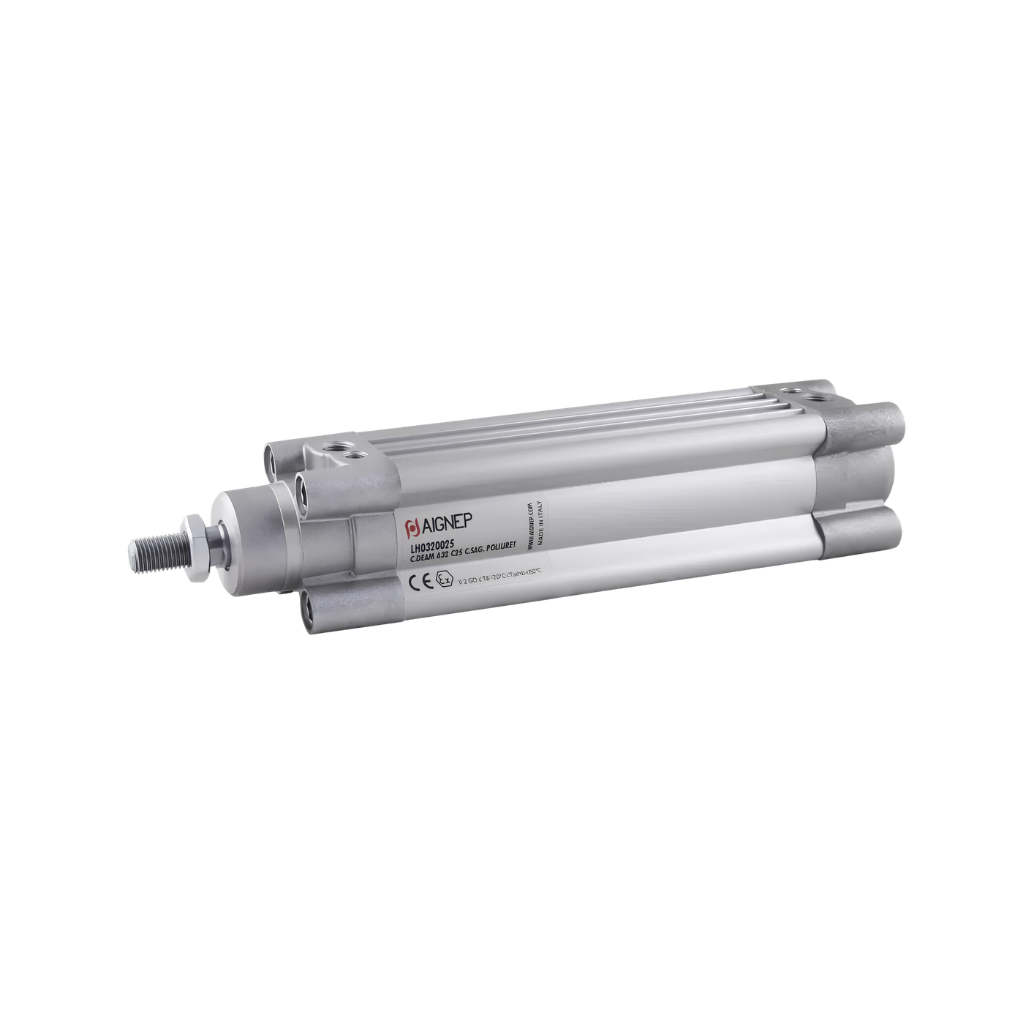

The AIGNEP Compact Double-Acting Pneumatic Cylinder, 100 mm Stroke Ø32 mm is a pneumatic linear actuator designed for industrial automation applications where reduced dimensions are required without sacrificing power or precision. The double-acting design allows for movement control in both directions (extend and retract) using compressed air, without the need for a return spring. It is compatible with magnetic position sensors for end-of-stroke detection. It features a chrome-plated steel rod for low friction and long service life, and an anodized aluminum body. Manufactured in Italy by AIGNEP.

Applications

• Precision pneumatic clamping and positioning systems
• Packaging, wrapping, and sorting machines
• Automated production lines with limited space
• Industrial machinery and OEM equipment
• General pneumatic automation with bidirectional control
• Any application requiring a compact double-acting linear actuator with a 100 mm stroke and Ø32 mm bore

Technical Specifications

• Type: Compact double-acting pneumatic cylinder
• Stroke: 100 mm
• Bore diameter: 32 mm
• Action: Double-acting (extend and retract by compressed air)
• Rod: Chrome-plated steel (low friction, high durability)
• Body: Anodized aluminum
• Sensors: Compatible with magnetic position sensors (end-of-stroke)
• Design: Compact — ideal for installations with limited space
• Country of manufacture: Italy
• Brand: Aignep

Equivalent to

• SMC CQ2B32-100D (CQ2 series, compact, double-acting, Ø32, 100mm)
• Festo ADVU-32-100-A-P-A (ADVU compact series)
• Camozzi Series 21 (21M2A032A100) compact double-acting
• Norgren Series RM/92032/M/100
• Parker Series P1D compact Ø32, 100mm
• Univer Series AE/K compact Ø32, 100mm
• Airtac SDA32x100 (compact double-acting)

Advantages of the Compact Design

• High repeatability: Precise positioning cycle after cycle in continuous 24/7 operation
• Low wear: Chrome-plated steel rod and optimized materials for long service life
• Position detection: Compatible with magnetic sensors for end-of-stroke control
• Easy integration: Compact dimensions for installations with limited space
• Minimal maintenance: Robust construction for continuous industrial cycles

Other Common Names

This product is also known as: compact double-acting pneumatic cylinder, 100 mm pneumatic linear actuator, Ø32 mm bore 100 mm stroke pneumatic cylinder, AIGNEP compact double-acting cylinder, compact double acting pneumatic cylinder, double acting cylinder 100mm stroke 32mm bore, pneumatic actuator compact 100mm or AIGNEP compact cylinder 32x100.
