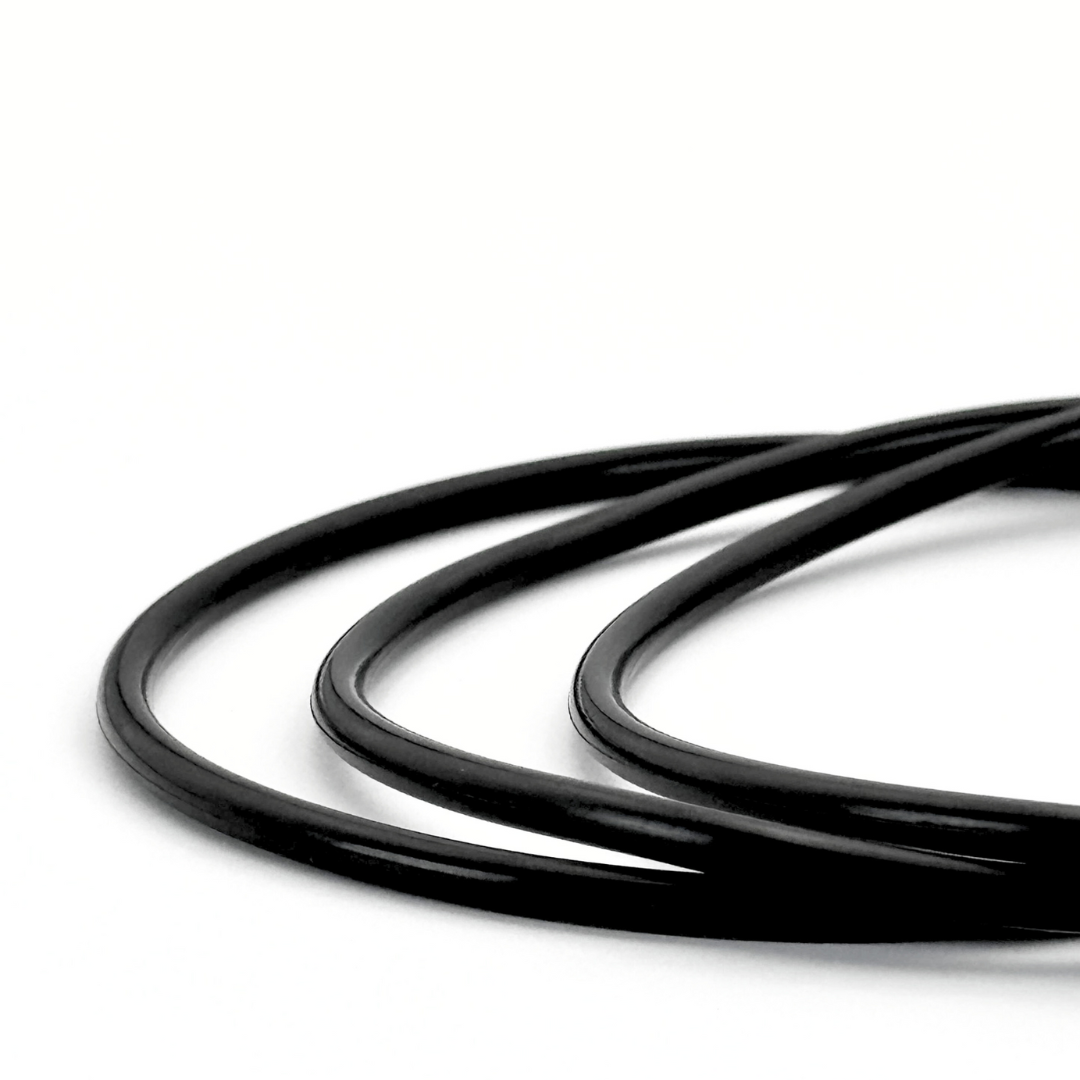

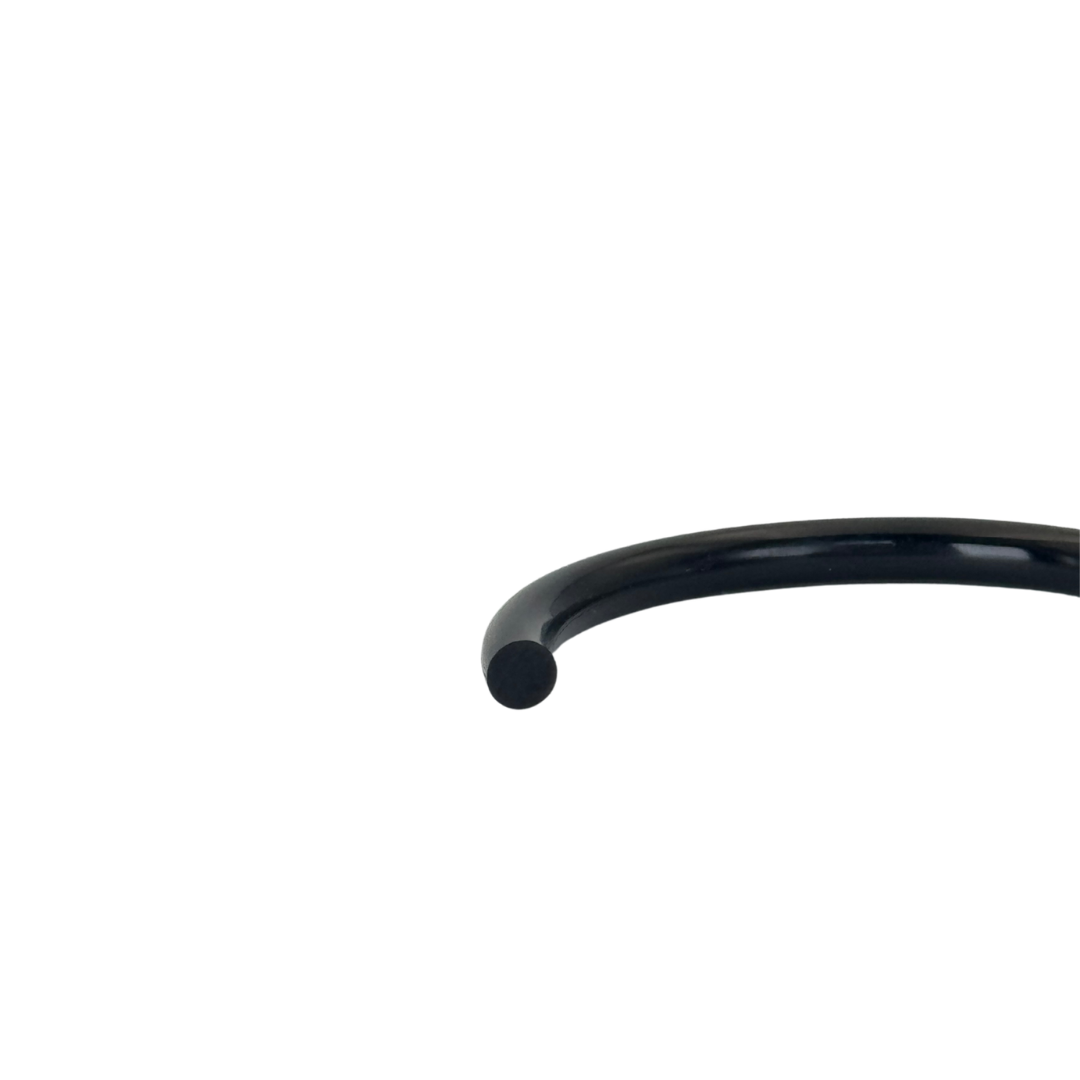

O-ring gasket in NBR, 1.25 mm thickness | Sealing Tech-G

The NBR (Nitrile Butadiene Rubber) O-ring with 1.25 mm thickness from Sealing Tech-G is a robust and reliable sealing solution for various industrial applications. Highly compatible with oils, fuels, lubricants, water, and numerous non-polar solvents, it is the elastomer of choice for environments with hydrocarbons. Its advanced formulation ensures excellent abrasion and tear resistance, extending the seal's lifespan and minimizing maintenance costs. The 1.25 mm thickness makes it ideal for precision sealing applications in tight spaces. Available with an internal diameter of 16 mm.

Applications

• Hydraulic and pneumatic systems: cylinders, valves, and precision actuators
• Automotive: engine, transmission, and fuel system seals
• Pumps and compressors: static and dynamic seals in contact with oils
• Industrial valves: seat and stem seals in oily fluids
• Oil and gas industry: seals in equipment exposed to hydrocarbons
• Instrumentation and measurement equipment: precision gaskets in confined spaces
• General machinery: inspection gaskets, covers, and connections with oil or water

Technical Specifications

• Material: NBR (Nitrile Butadiene Rubber)
• Seal thickness (CS): 1.25 mm
• Available internal diameter: 16 mm
• Temperature range: -30 °C to +100 °C (peaks up to +120 °C)
• Chemical resistance: Mineral oils, fuels, lubricants, water, non-polar solvents
• Configuration: O-ring
• Sales unit: Unit
• Country of origin: Taiwan
• Brand: Sealing Tech-G

Chemical Compatibility

NBR is compatible with mineral oils, fuels, lubricants, water, and non-polar solvents. It is not compatible with concentrated acids, ketones, esters, ozone, or glycol-based brake fluids. For these applications, consider EPDM or VITON O-rings.

Other Common Names

This component is also known as: NBR o-ring 1.25 mm, nitrile oring 1.25, precision NBR round gasket, nitrile o-ring seal, NBR O-ring 1.25mm CS, nitrile rubber oring, NBR O-ring, nitrile rubber O-ring, industrial oring gasket Honduras.
