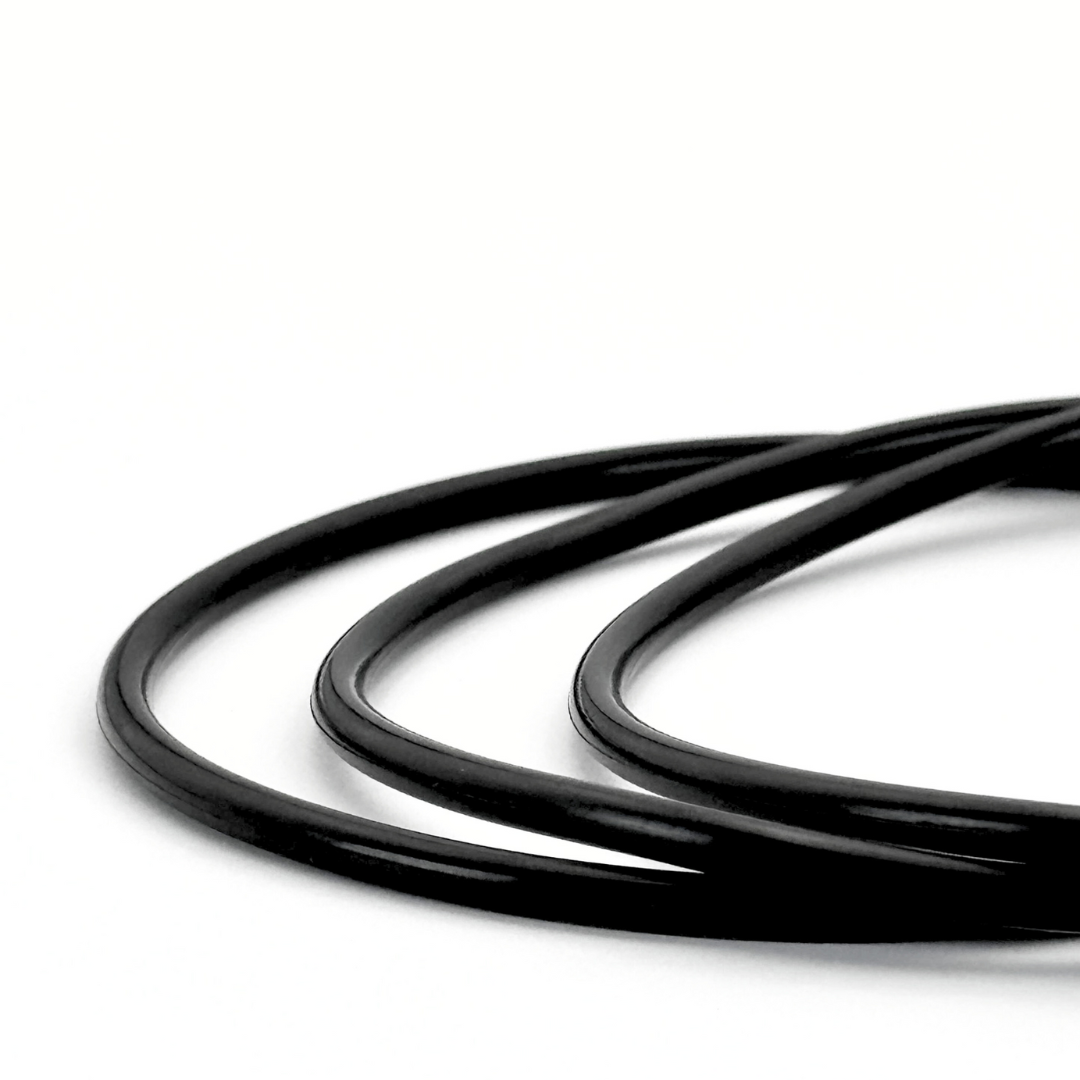

O-ring Gasket in NBR, 1.6 mm Thickness | Sealing Tech-G

The Sealing Tech-G NBR (Nitrile Butadiene Rubber) O-ring with a 1.6 mm thickness is a robust and reliable sealing solution for various industrial applications. Highly compatible with oils, fuels, lubricants, water, and numerous non-polar solvents, it is the elastomer of choice for environments where hydrocarbons are present. Its advanced formulation ensures excellent abrasion and tear resistance, extending the seal's lifespan and minimizing maintenance costs. With precise decimal measurements, this 1.6 mm thickness is common in AS568 series seals and instrumentation applications. Available in 13 internal diameters: from 2.5 mm to 37.1 mm.

Applications

• Hydraulic and pneumatic systems: precision cylinders, valves, and actuators
• Automotive: engine, transmission, and fuel system seals
• Pumps and compressors: static and dynamic seals in contact with oils
• Industrial instrumentation: precision seals in measurement and control equipment
• Industrial valves: seat and stem seals in oily fluids
• Oil and gas industry: seals in equipment exposed to hydrocarbons
• General machinery: inspection gaskets, covers, and connections with oil or water

Technical Specifications

• Material: NBR (Nitrile Butadiene Rubber)
• Cross Section (CS): 1.6 mm
• Available Internal Diameters: 2.5 / 2.8 / 3.1 / 7.1 / 9.1 / 9.5 / 10.1 / 11.1 / 12.1 / 14.1 / 25.1 / 27.1 / 37.1 mm
• Temperature Range: -30 °C to +100 °C (peaks up to +120 °C)
• Chemical Resistance: Mineral oils, fuels, lubricants, water, non-polar solvents
• Configuration: O-ring
• Unit of Sale: Unit
• Country of Origin: Taiwan
• Brand: Sealing Tech-G

Chemical Compatibility

NBR is compatible with mineral oils, fuels, lubricants, water, and non-polar solvents. It is not compatible with concentrated acids, ketones, esters, ozone, or glycol-based brake fluids. For these applications, consider EPDM or VITON O-rings.

Other Common Names

This component is also known as: NBR o-ring 1.6 mm, nitrile o-ring 1.6, precision NBR round gasket, AS568 nitrile o-ring, NBR O-ring 1.6mm CS, nitrile rubber o-ring, NBR toric seal, nitrile rubber O-ring, industrial o-ring gasket Honduras.
