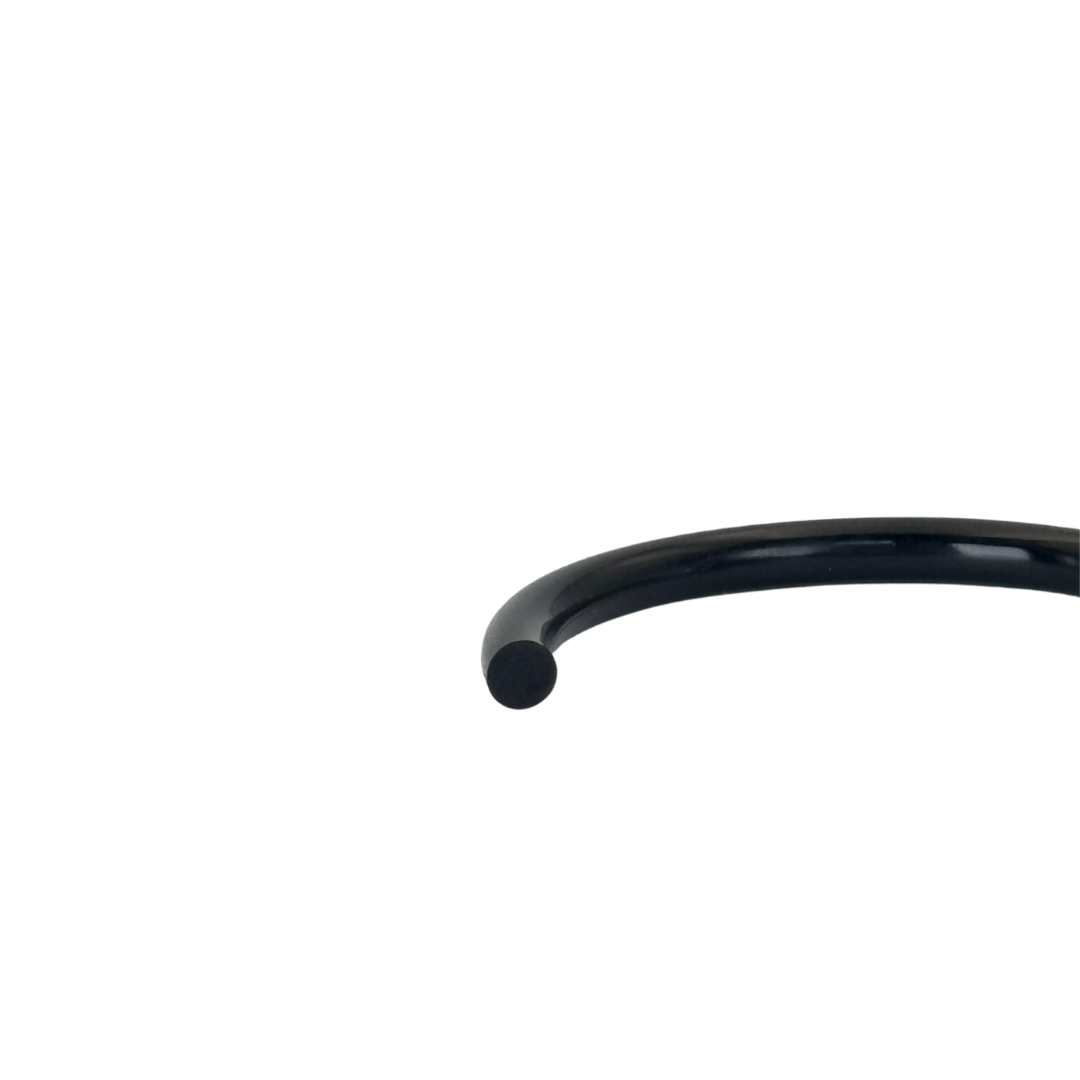

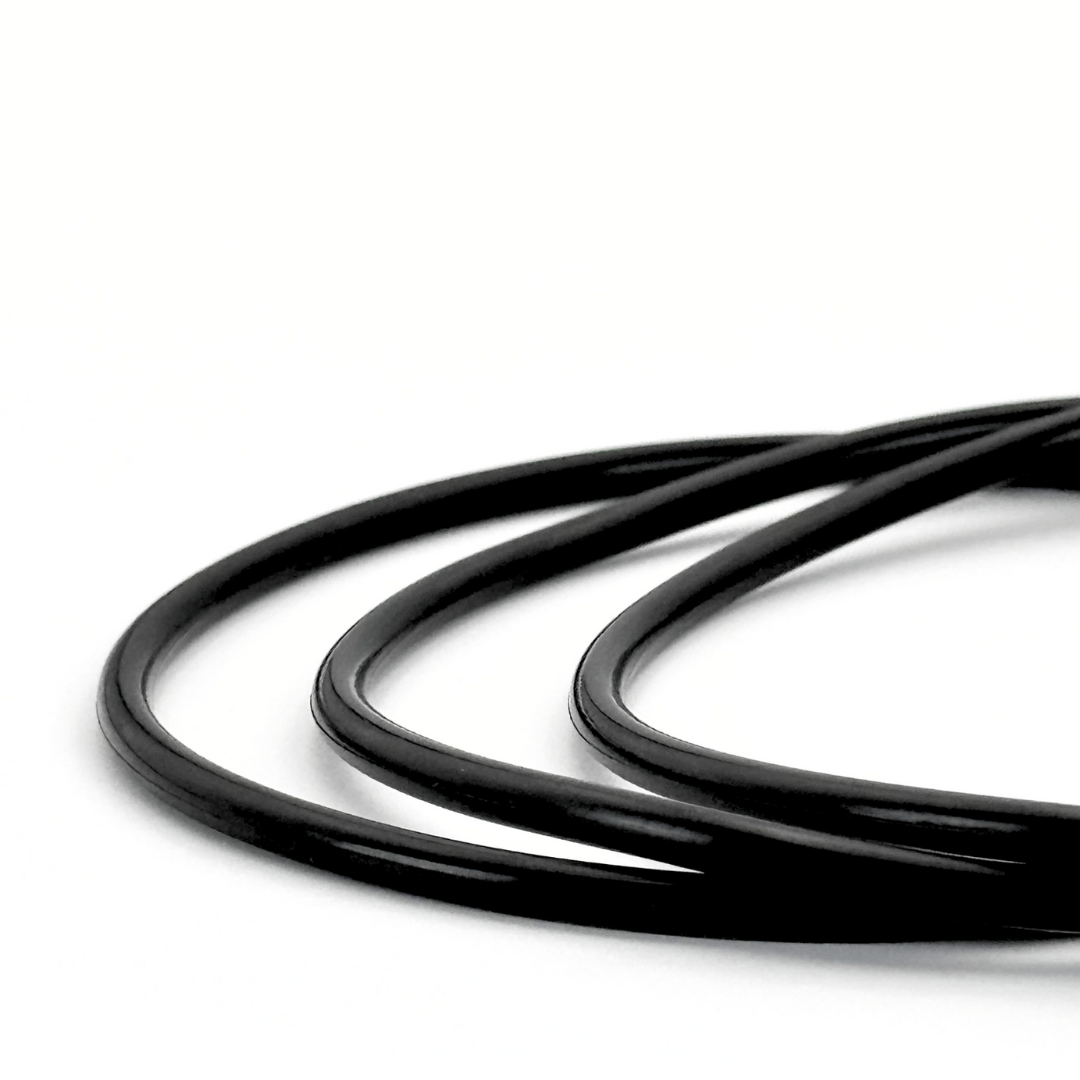

NBR O-ring Gasket, 1.8 mm Thickness | Sealing Tech-G

The Sealing Tech-G NBR (Nitrile Butadiene Rubber) O-ring with 1.8 mm thickness is a robust and reliable sealing solution for various industrial applications. Highly compatible with oils, fuels, lubricants, water, and numerous non-polar solvents, it is the elastomer of choice for environments with hydrocarbons. Its advanced formulation ensures excellent abrasion and tear resistance, extending the seal's lifespan and minimizing maintenance costs. Available in internal diameters of 7.5 mm and 20.5 mm, with a seal thickness of 1.8 mm.

Applications

• Hydraulic and pneumatic systems: cylinders, valves, and actuators
• Automotive: engine, transmission, and fuel system seals
• Pumps and compressors: static and dynamic seals in contact with oils
• Industrial valves: seat and stem seals in oily fluids
• Oil and gas industry: seals in equipment exposed to hydrocarbons
• General machinery: inspection gaskets, covers, and connections with oil or water
• Industrial refrigeration: seals in systems with NBR-compatible refrigerants

Technical Specifications

• Material: NBR (Nitrile Butadiene Rubber)
• Seal thickness (CS): 1.8 mm
• Available internal diameters: 7.5 mm / 20.5 mm
• Temperature range: -30 °C to +100 °C (peaks up to +120 °C)
• Chemical resistance: Mineral oils, fuels, lubricants, water, non-polar solvents
• Configuration: O-ring
• Sales unit: Unit
• Country of origin: Taiwan
• Brand: Sealing Tech-G

Chemical Compatibility

NBR is compatible with mineral oils, fuels, lubricants, water, and non-polar solvents. It is not compatible with concentrated acids, ketones, esters, ozone, or glycol-based brake fluids. For these applications, consider EPDM or VITON O-rings.

Other Common Names

This component is also known as: o-ring NBR 1.8 mm, nitrile o-ring 1.8, NBR round gasket, nitrile o-ring seal, NBR O-ring 1.8mm CS, nitrile rubber o-ring, NBR o-ring, nitrile rubber O-ring, industrial o-ring gasket Honduras.
