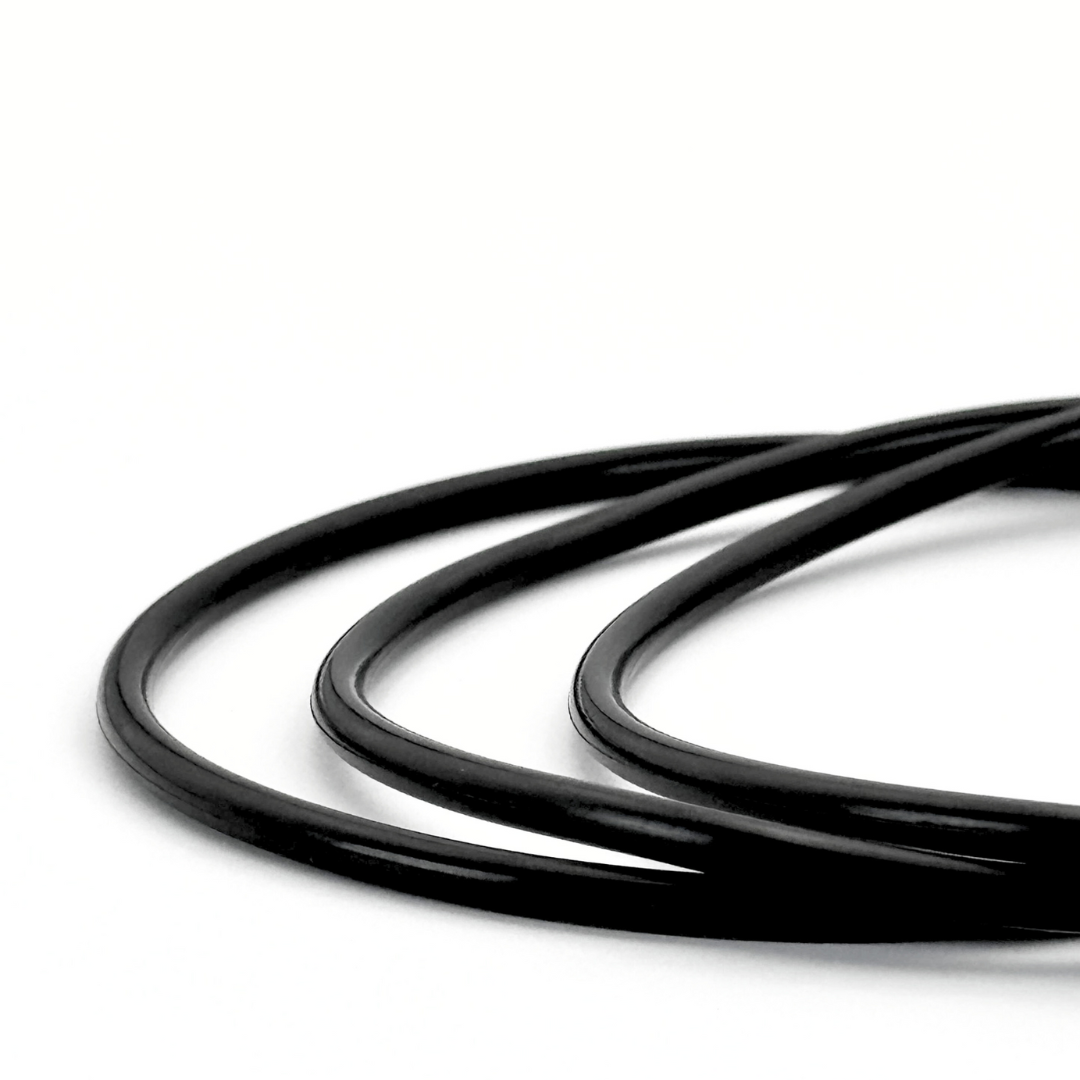

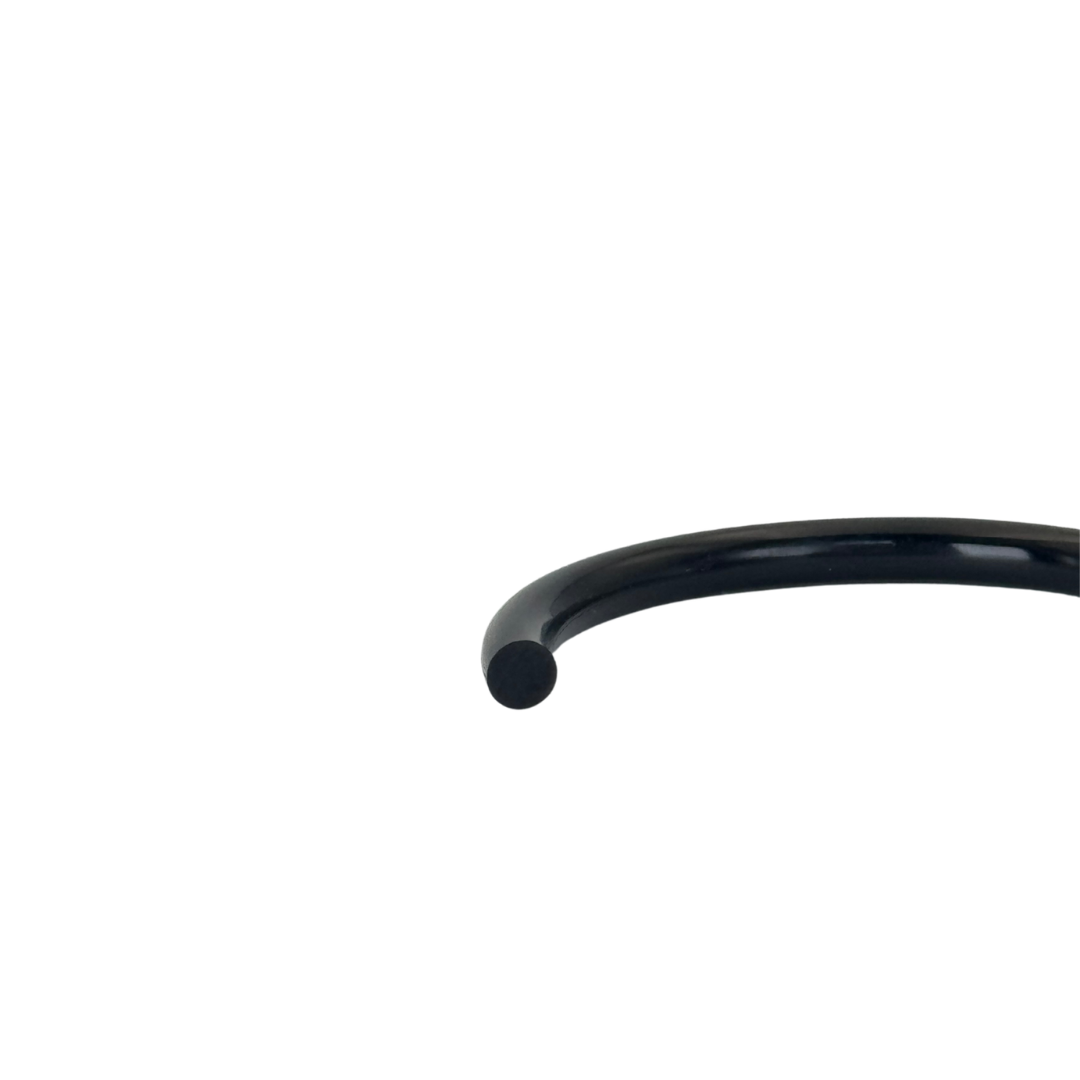

O-ring Packing in NBR, 1 mm Thickness | Sealing Tech-G

The NBR (Nitrile Butadiene Rubber) O-ring with 1 mm thickness from Sealing Tech-G is a robust and reliable sealing solution for various industrial applications. Highly compatible with oils, fuels, lubricants, water, and numerous non-polar solvents, it is the elastomer of choice for environments with hydrocarbons. Its advanced formulation ensures excellent abrasion and tear resistance, extending the seal's lifespan and minimizing maintenance costs. The 1 mm thickness makes it ideal for sealing applications in confined spaces or precision joints. Available in 23 internal diameters: from 2 mm to 48 mm.

Applications

• Hydraulic and pneumatic systems: precision cylinders, valves, and actuators
• Automotive: engine, transmission, and fuel system seals
• Pumps and compressors: static and dynamic seals in contact with oils
• Industrial valves: seat and stem seals in oily fluids
• Oil and gas industry: seals in equipment exposed to hydrocarbons
• Instrumentation and measurement equipment: precision gaskets in confined spaces
• General machinery: inspection gaskets, covers, and connections with oil or water

Technical Specifications

• Material: NBR (Nitrile Butadiene Rubber)
• Seal Thickness (CS): 1 mm
• Available Internal Diameters: 2 / 3 / 4 / 5 / 6 / 7 / 8 / 8.5 / 9 / 9.5 / 10 / 11 / 12 / 13 / 14 / 15 / 16 / 17 / 18 / 20 / 23 / 25 / 48 mm
• Temperature Range: -30 °C to +100 °C (peaks up to +120 °C)
• Chemical Resistance: Mineral oils, fuels, lubricants, water, non-polar solvents
• Configuration: O-ring
• Unit of Sale: Unit
• Country of Origin: Taiwan
• Brand: Sealing Tech-G

Chemical Compatibility

NBR is compatible with mineral oils, fuels, lubricants, water, and non-polar solvents. It is not compatible with concentrated acids, ketones, esters, ozone, or glycol-based brake fluids. For these applications, consider EPDM or VITON O-rings.
