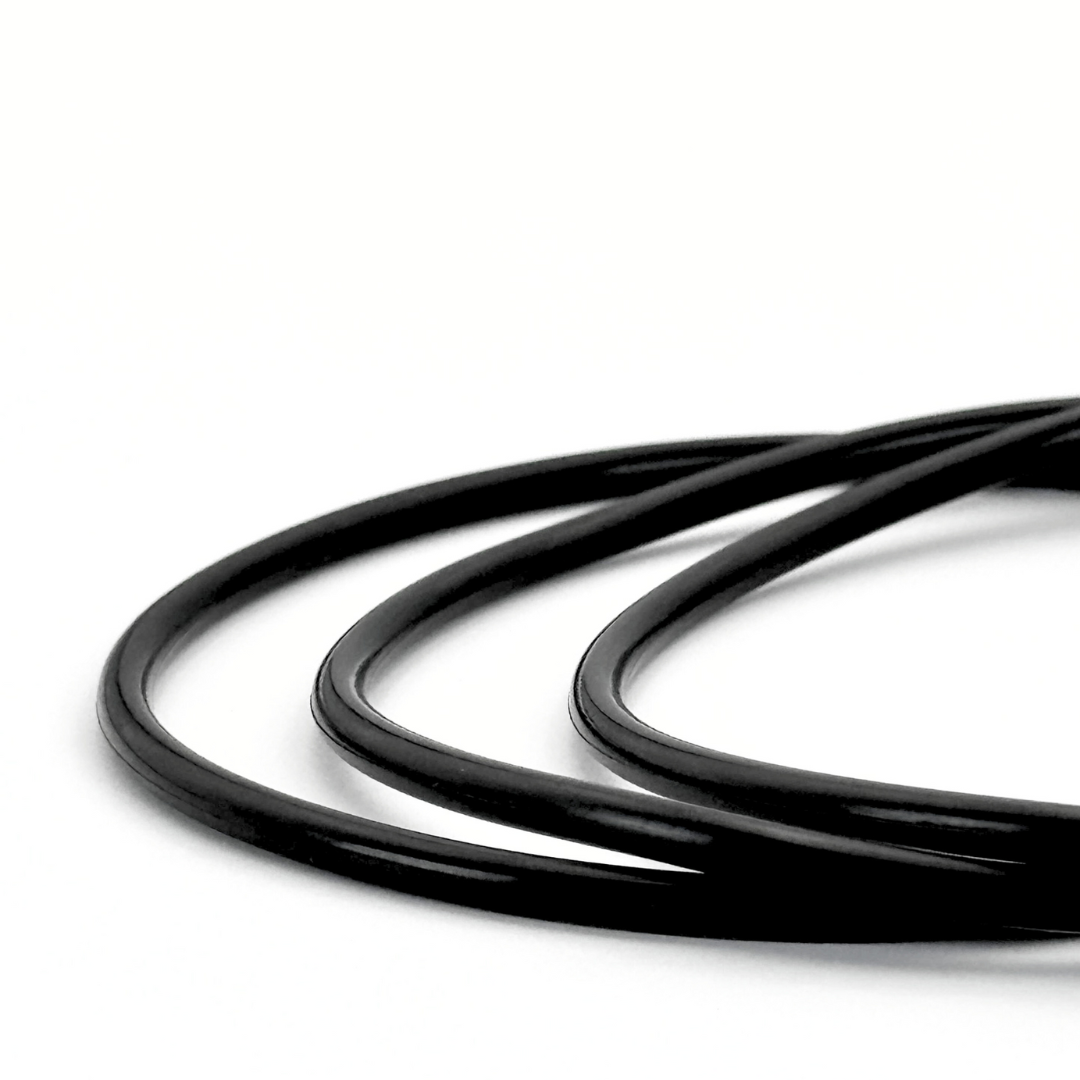

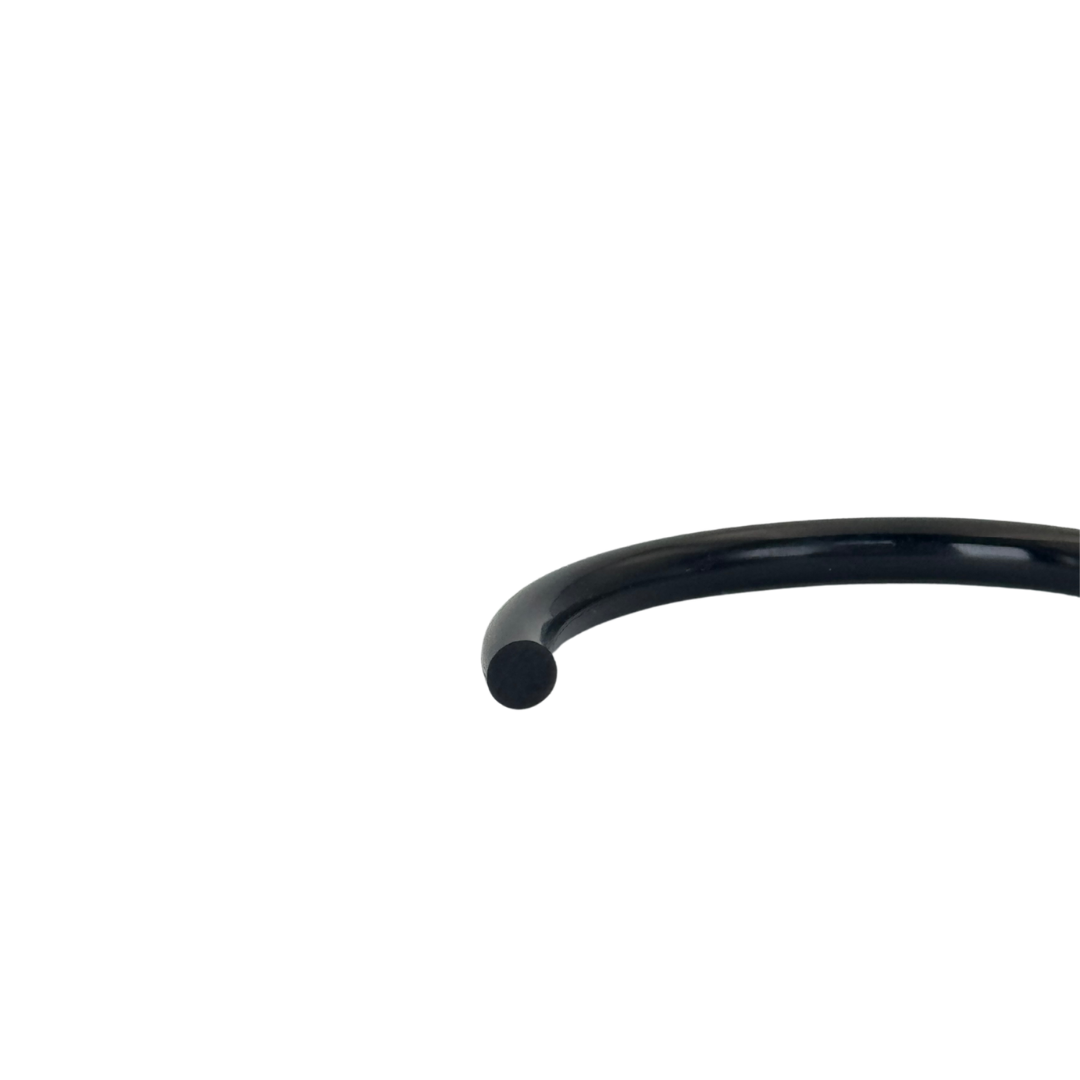

O-ring packing in NBR, 2.2 mm Thickness | Sealing Tech-G

The Sealing Tech-G NBR (Nitrile Butadiene Rubber) O-ring with a thickness of 2.2 mm is a robust and reliable sealing solution for industrial applications requiring precise intermediate dimensions. Highly compatible with oils, fuels, lubricants, water, and numerous non-polar solvents, it is the go-to elastomer for environments with hydrocarbons. Its advanced formulation ensures excellent abrasion and tear resistance, extending the seal's lifespan and minimizing maintenance costs. Available with an internal diameter of 10 mm, with a seal thickness of 2.2 mm.

Applications

• Hydraulic and pneumatic systems: cylinders, valves, and precision actuators
• Automotive: engine, transmission, and fuel system seals
• Pumps and compressors: static and dynamic seals in contact with oils
• Industrial instrumentation: precision seals in measurement and control equipment
• Industrial valves: seat and stem seals in oily fluids
• Oil and gas industry: seals in equipment exposed to hydrocarbons
• General machinery: inspection gaskets, covers, and connections with oil or water

Technical Specifications

• Material: NBR (Nitrile Butadiene Rubber)
• Seal thickness (CS): 2.2 mm
• Available internal diameter: 10 mm
• Temperature range: -30 °C to +100 °C (peaks up to +120 °C)
• Chemical resistance: Mineral oils, fuels, lubricants, water, non-polar solvents
• Configuration: O-ring
• Unit of sale: Unit
• Country of origin: Taiwan
• Brand: Sealing Tech-G

Chemical Compatibility

NBR is compatible with mineral oils, fuels, lubricants, water, and non-polar solvents. It is not compatible with concentrated acids, ketones, esters, ozone, or glycol-based brake fluids. For these applications, consider EPDM or VITON O-rings.

Other Common Names

This component is also known as: NBR o-ring 2.2 mm, nitrile oring 2.2, NBR precision round gasket, nitrile o-ring 2.2mm, NBR O-ring 2.2mm CS, nitrile rubber oring, NBR o-ring, nitrile rubber O-ring, industrial oring gasket Honduras.
