Power Supply 24V DC, 3.8A, 92W, NEC Class 2, Model QS5.DNET | PULS

PULS QS5.DNET Power Supply, 24V DC, 3.8A, 92W, NEC Class 2, DIN Rail

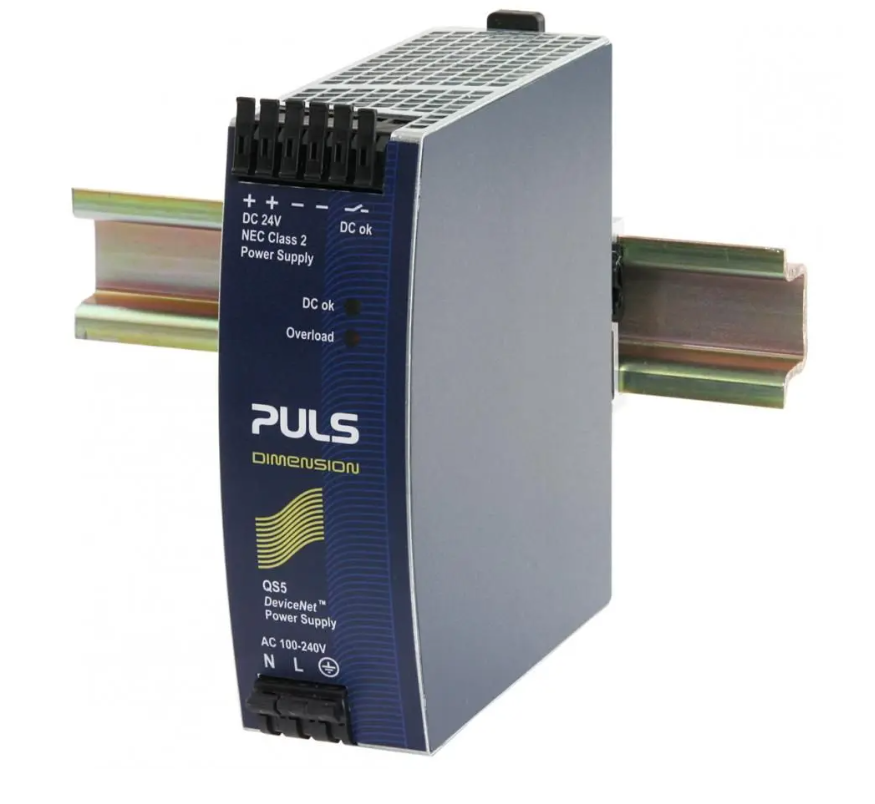

The PULS QS5.DNET power supply is a single-phase unit from the DIMENSION series, providing 24V DC, 3.8A, and 92W. It is NEC Class 2 certified, ensuring safe operation by limiting output power to protect cables and network components from overloads. Its advanced thermal management allows it to operate at full load up to +60 °C. Features include LED indicators (green "DC ok" / red "Overload"), a dry contact relay output for signaling to PLCs or SCADA systems, and quick DIN rail mounting with robust screw terminals. Manufactured in Germany.

Applications

• Powering 24V DC PLCs, HMIs, and industrial controllers
• DeviceNet networks and automation systems requiring NEC Class 2
• Control cabinets and automation panels in industrial manufacturing
• Powering 24V DC sensors, actuators, and field devices
• SCADA systems, DCS, and industrial telecommunications equipment
• Installations in high-temperature environments up to +60 °C

Technical Specifications

• Model: PULS QS5.DNET
• Series: DIMENSION
• Brand: PULS
• Output voltage: 24V DC
• Output current: 3.8 A
• Rated power: 92 W
• Certification: NEC Class 2
• Maximum operating temperature at full load: +60 °C

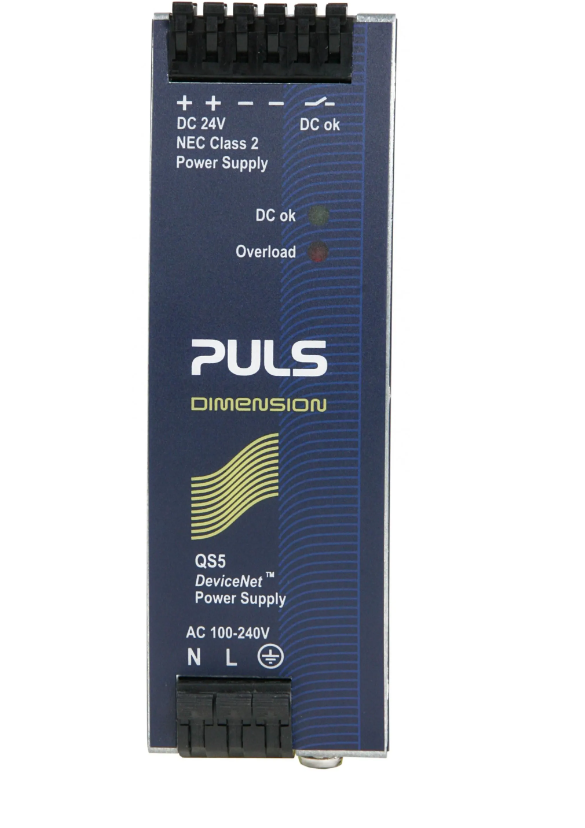

• Indicators: Green LED (DC ok) + Red LED (Overload)
• Relay contact: Dry contact output for PLC/SCADA
• Mounting: DIN rail with robust screw terminals
• Type: Single-phase
• Country of origin: Germany
