Tension Brake Magnet, 24V DC, TB-500 Series, Model 5300-631-040 | Warner Electric

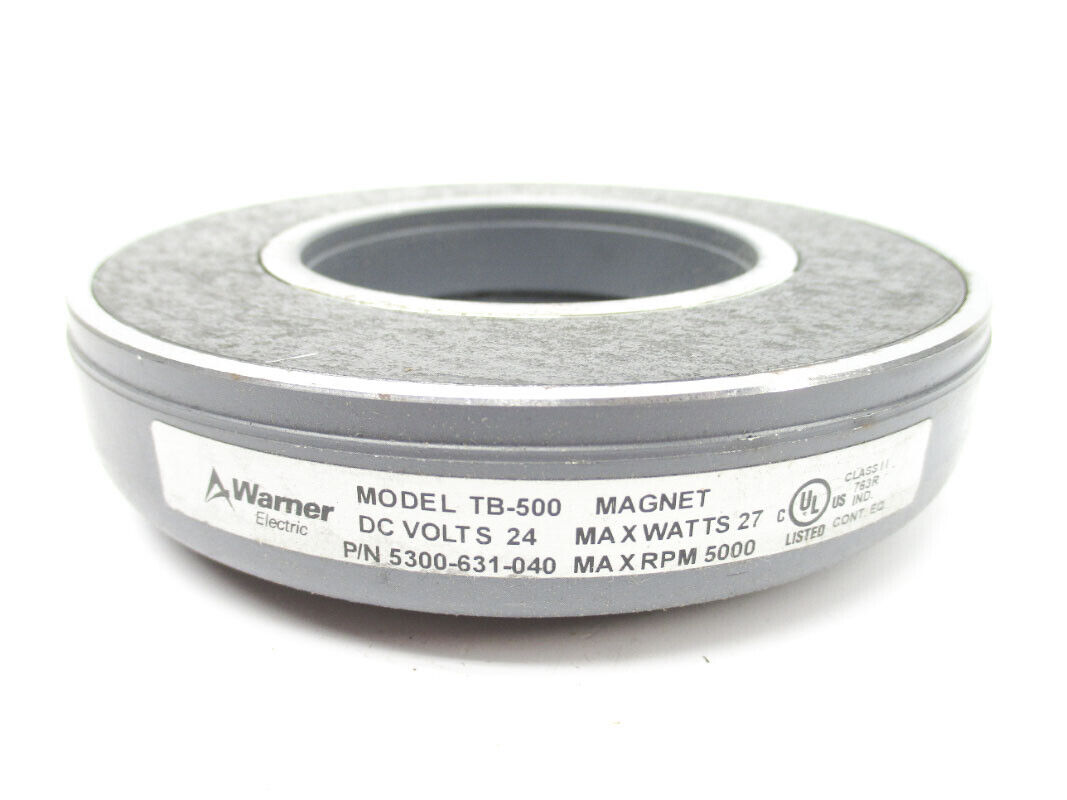

The Warner Electric 5300-631-040 is an OEM replacement magnet assembly specifically designed for TB-500 series electromagnetic tension brakes. It operates at 24V DC and generates the magnetic field that attracts the armature to precisely control braking torque in winding, converting, and material handling processes for flexible materials. Its Inside Mounted (IM) configuration allows for compact integration onto the shaft, and its highly durable construction ensures reliable performance in continuous duty cycles.

Applications

• Tension control in paper and cardboard winding and unwinding machines
• Tension regulation in plastic film and laminate converting lines
• Tension control in textile processes: weaving, dyeing, and finishing
• Packaging systems with web tension control
• Flexographic and offset printing with substrate tension control
• OEM replacement in 5-inch diameter TB-500 brakes in service

Technical Specifications

• Model: 5300-631-040
• Compatible Series: Warner Electric TB-500
• Component Type: Replacement Magnet Assembly (OEM)
• Operating Voltage: 24V DC
• Mounting Configuration: Inside Mounted (IM)
• Compatible Diameter: 5 inches
• Function: Precision electromagnetic tension control
• Torque Type: Constant and smooth (tension brake)
• Manufacturer: Warner Electric
• Country of Origin: United States
