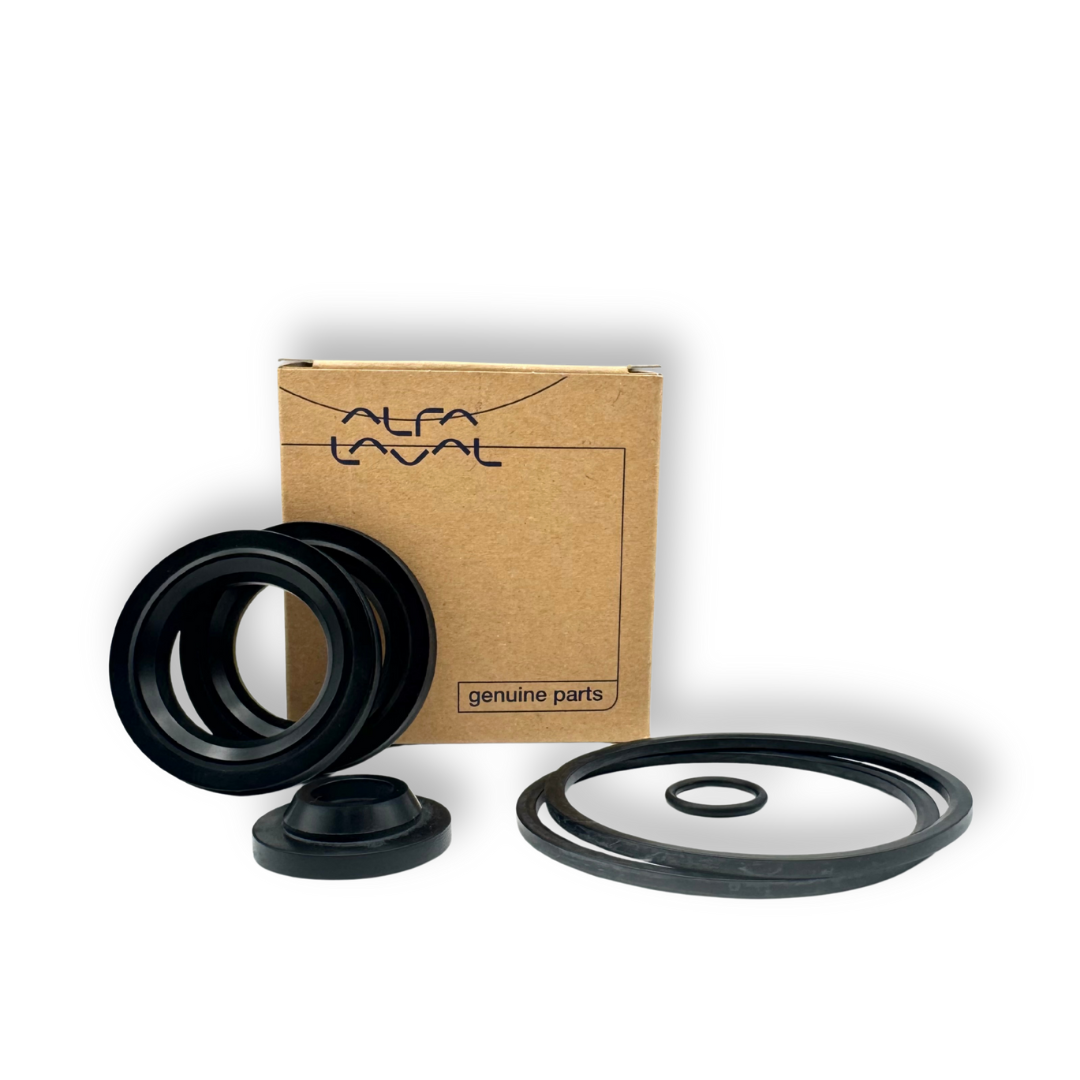

Kit for Double Seat Valves SRC/SMO/ARC Series in EPDM | Alfa Laval

The Alfa Laval SRC/SMO/ARC Double-Seat Valve Service Kit in EPDM is the original maintenance kit designed to ensure a hygienic, reliable, and durable seal in Alfa Laval i-SSV, SRC, SRC-LS, SMO, SMO-R, and SPC-1 series sanitary single- and double-seat valves. Available in DN 50 size with high-quality EPDM elastomer (manufacturer's reference: 9611920475). It offers excellent resistance to heat, steam, and CIP/SIP cleaning agents, maintaining its elasticity and sealing properties after multiple operating cycles. It complies with the hygiene standards required by the food, beverage, and pharmaceutical industries. Manufacturer: Alfa Laval (Denmark).

Valve Compatibility

• Alfa Laval i-SSV — intelligent double-seat valve
• Alfa Laval SRC — standard double-seat valve
• Alfa Laval SRC-LS — low-leakage double-seat valve
• Alfa Laval SMO — double-seat valve with actuator
• Alfa Laval SMO-R — double-seat valve with spring return
• Alfa Laval SPC-1 — single-seat process valve

Applications

• Food industry: process lines for dairy, juices, sauces, and food fluids requiring fluid separation via double-seat valves
• Beverage and dairy industry: beer, wine, milk, and dairy product processing with strict hygiene requirements
• Pharmaceutical and biotechnology industry: sterile fluid processing with frequent CIP/SIP cycles and traceability requirements
• CIP/SIP cleaning systems: resistance to alkaline detergents, diluted acids, and high-temperature steam
• Mixing and distribution applications: double-seat valves for process and cleaning circuit separation
• Preventive and corrective maintenance of Alfa Laval SRC, SMO, i-SSV, and SPC-1 valves in production plants

Technical Specifications

• Type: Service kit — replacement gaskets for sanitary double-seat valves
• Compatibility: Alfa Laval i-SSV / SRC / SRC-LS / SMO / SMO-R / SPC-1
• Size: DN 50
• Gasket material: EPDM
• Manufacturer's reference: 9611920475
• Resistance: Heat, steam, CIP/SIP, alkaline detergents, and diluted acids
• Sales unit: Kit
• Country of origin: Denmark
• Manufacturer: Alfa Laval

EPDM Elastomer Chemical Compatibility

EPDM is compatible with water, hot water, steam, glycols, diluted acids, alkaline fluids, and CIP/SIP cleaning products. It is not compatible with mineral oils, hydrocarbons, fuels, or aromatic solvents. For applications with oils or fuels, please consult our technical team to select the appropriate material (NBR or FKM/Viton).

Other Common Names

This component is also known as: Alfa Laval double-seat valve service kit, SRC SMO EPDM valve gasket, Alfa Laval i-SSV SRC SMO service kit, double-seat valve spare part Honduras, Alfa Laval DN50 sanitary valve maintenance kit, 9611920475 Alfa Laval, double seat valve service kit EPDM, double-seat sanitary valve gasket Honduras.
