Short Thread Straight Connector | CDC Pneumatics

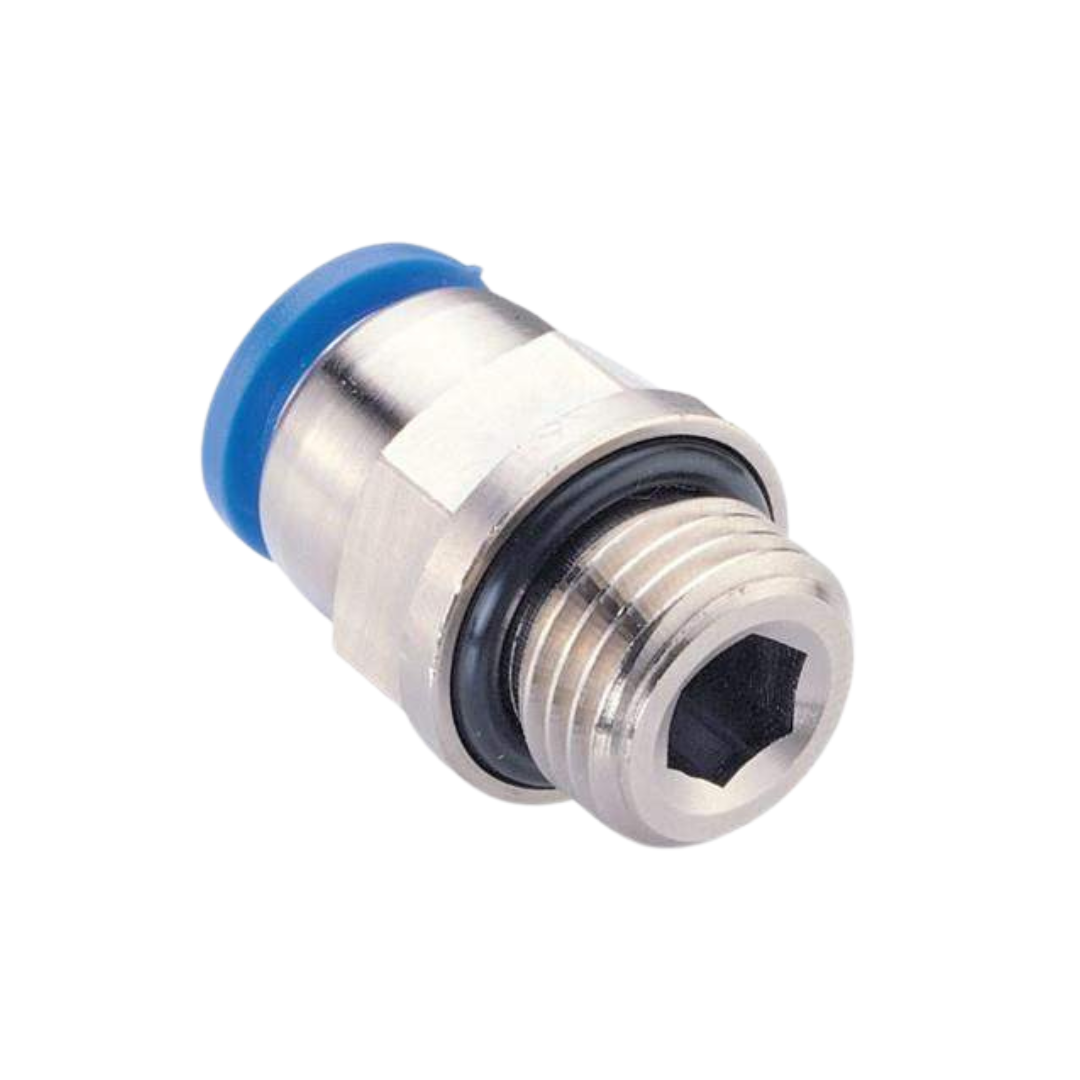

The CDC Pneumatics MPC Series Straight Short Thread Fitting is a quick-connect push-in fitting designed to connect pneumatic hoses to threaded ports on valves, cylinders, and equipment in compressed air systems. Its short thread facilitates installation in confined spaces and in ports with limited depth where a standard threaded fitting would not fit. Push-in technology allows for tool-free hose assembly and disassembly. Available in multiple combinations of hose diameter (6, 8, 10, and 12 mm) and BSPP thread (1/4", 3/8", and 1/2"). Manufactured in South Korea by CDC Pneumatics.

References by Variant

• 6 mm × 1/4" BSPP: CDC MPC 06G01
• 6 mm × 1/4" BSPP (alt): CDC MPC 06G02
• 8 mm × 1/4" BSPP: CDC MPC 08G04
• 8 mm × 1/2" BSPP: CDC MPC 08G02
• 10 mm × 3/8" BSPP: CDC MPC 10G03 / MPC 10G04
• 12 mm × 3/8" BSPP: CDC MPC 12G03

Advantage of Short Thread

• Installation in confined spaces: Lower profile than standard threaded fittings, ideal for ports with limited depth
• Fewer tightening turns: Faster installation without compromising the seal
• Compact design: Ideal for pneumatic panels, manifolds, and automation cabinets with limited space

Applications

• Connection of pneumatic hoses to threaded ports on valves, cylinders, and equipment
• Industrial compressed air systems with limited space at the connection point
• Pneumatic panels, manifolds, and automation cabinets
• Industrial machinery and OEM equipment with short thread ports
• Any push-in pneumatic application with 6 to 12 mm hose and 1/4" to 1/2" BSPP thread

Technical Specifications

• Series: CDC Pneumatics MPC
• Type: Straight short thread push-in fitting
• Hose diameters: 6 mm / 8 mm / 10 mm / 12 mm
• Available threads: 1/4" BSPP / 3/8" BSPP / 1/2" BSPP
• Hose installation: Push-in (tool-free)
• Country of manufacture: South Korea
• Brand: CDC Pneumatics

Other Common Names

This product is also known as: straight pneumatic fitting short thread, straight push-in fitting short thread BSPP, compact pneumatic quick connector, mini pneumatic push-in fitting, straight push-in fitting short thread, short thread pneumatic fitting BSPP, compact push-in connector pneumatic or CDC Pneumatics MPC straight fitting.
