Mechanical Seal for Lowara SV/SVI Pump | Sealing Tech-G

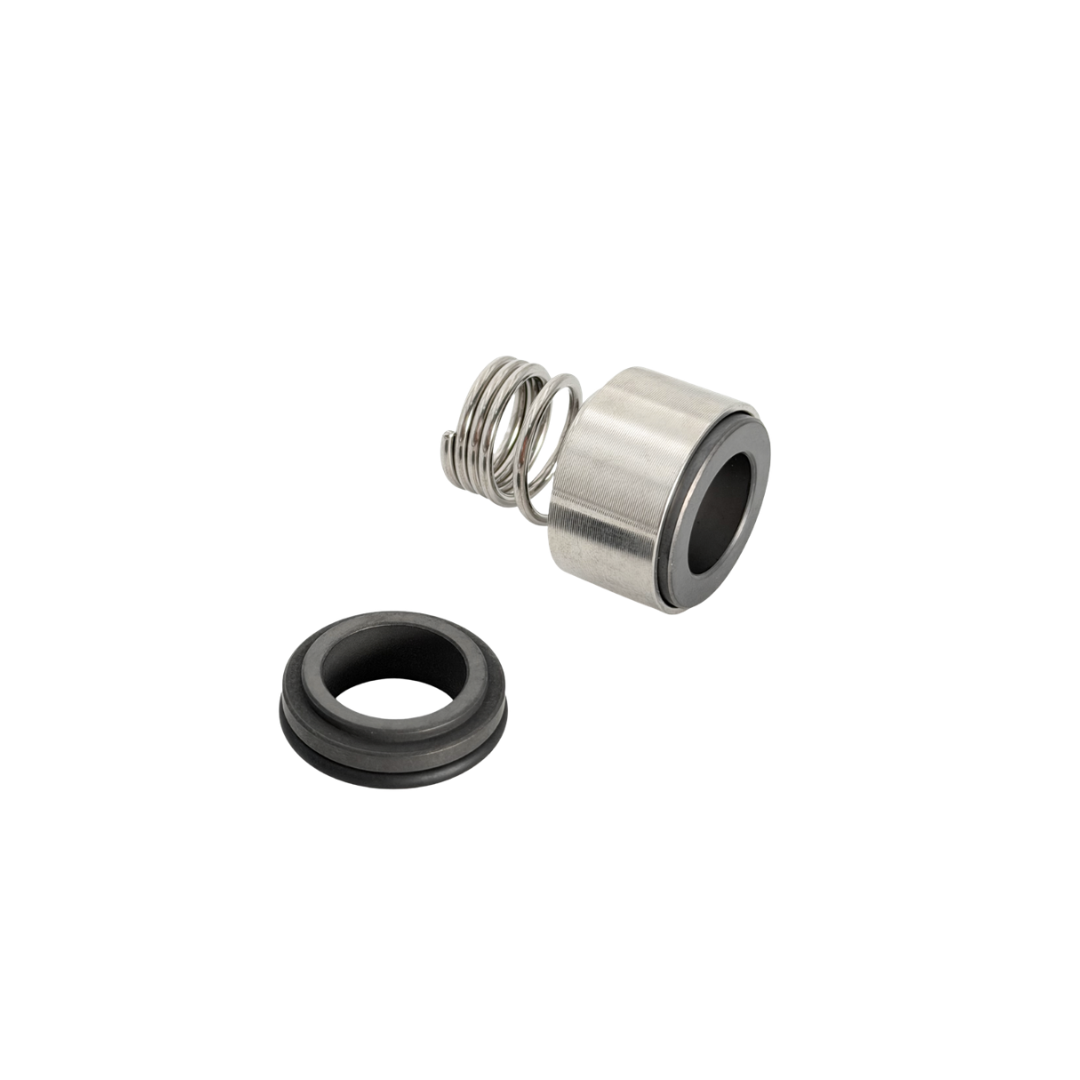

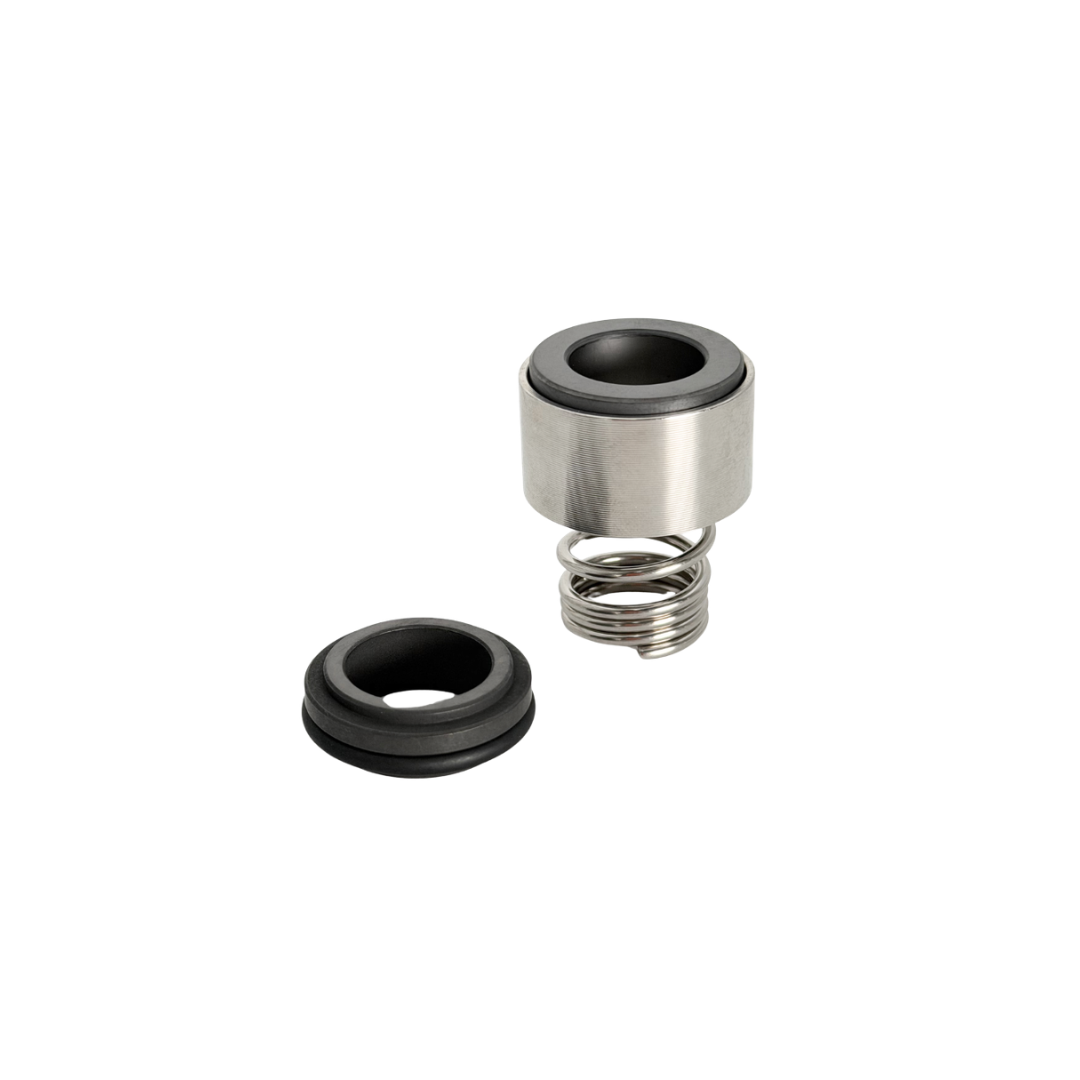

The Sealing Tech-G Lowara SV/SVI Pump Mechanical Seal is a direct replacement seal specifically designed for Lowara SV and SVI series vertical multi-stage centrifugal pumps, ensuring a secure, leak-free, and long-lasting seal in high-pressure applications. Available in 2 shaft diameters: 12 mm and 16 mm, with Carbon-Silicon (C/SiC) faces and an EPDM elastomer. The C/SiC combination offers superior chemical, thermal, and mechanical resistance compared to conventional ceramic seals, making it the optimal choice for the demanding operating conditions of vertical multi-stage pumps. Origin: Spain / Taiwan. Manufacturer: Sealing Tech-G.

Sealing Face Materials

• Carbon/Graphite (rotating face): Self-lubricating, low friction, and excellent wear resistance. Performs well in clean water and low-viscosity fluids.
• Silicon Carbide — SiC (stationary face): Maximum hardness, resistance to abrasive fluids and high temperatures. Superior to conventional ceramic in high pressure and temperature conditions.
• EPDM Elastomer: Resistant to hot water, steam, glycols, alkaline fluids, and diluted acids. Temperature range: -40 °C to +150 °C. Not compatible with mineral oils or hydrocarbons.

Applications

• Direct replacement for shaft seals in Lowara SV and SVI series vertical multi-stage pumps.
• Potable and industrial water pressure systems: high-pressure pumps for buildings, industry, and municipalities.
• HVAC and air conditioning systems: hot and cold water circulation pumps in high-demand installations.
• Technified irrigation and water supply systems: pressure pumps for agriculture and water infrastructure.
• Water treatment industry: high-pressure pumps for reverse osmosis, filtration, and distribution.
• Applications with aggressive or high-temperature fluids where conventional ceramic is insufficient.
• Preventive and corrective maintenance of Lowara SV/SVI pumps in industrial, commercial, and infrastructure installations.

Technical Specifications

• Type: Single mechanical seal replacement for Lowara SV/SVI vertical multi-stage pump.
• Available shaft diameters: 12 mm / 16 mm.
• Face material: Carbon-Silicon (C/SiC).
• Elastomer material: EPDM.
• Temperature range (EPDM): -40 °C to +150 °C.
• Application: Lowara SV and SVI vertical multi-stage centrifugal pumps.
• Unit of sale: Unit.
• Country of origin: Spain / Taiwan.
• Manufacturer: Sealing Tech-G.

Equivalent to

• EagleBurgmann MG1/G60 (12/16mm, C/SiC)
• John Crane Type 1/1B (12/16mm, C/SiC)
• AESSEAL Series PPES/B1 (12/16mm, C/SiC)
• Vulcan Seals Series 1/MG1 (12/16mm, C/SiC)
• Roten Series MG1 (12/16mm, C/SiC)
• Lowara (OEM) Original Lowara SV/SVI seal kit

Chemical Compatibility of EPDM Elastomer

EPDM is compatible with water, hot water, steam, glycols, diluted acids, and alkaline fluids. It is not compatible with mineral oils, hydrocarbons, fuels, or aromatic solvents. For applications with oils or fuels, please consult our technical team to select the appropriate elastomer (NBR or FKM/Viton).
