Long Pneumatic Silencer | Aignep

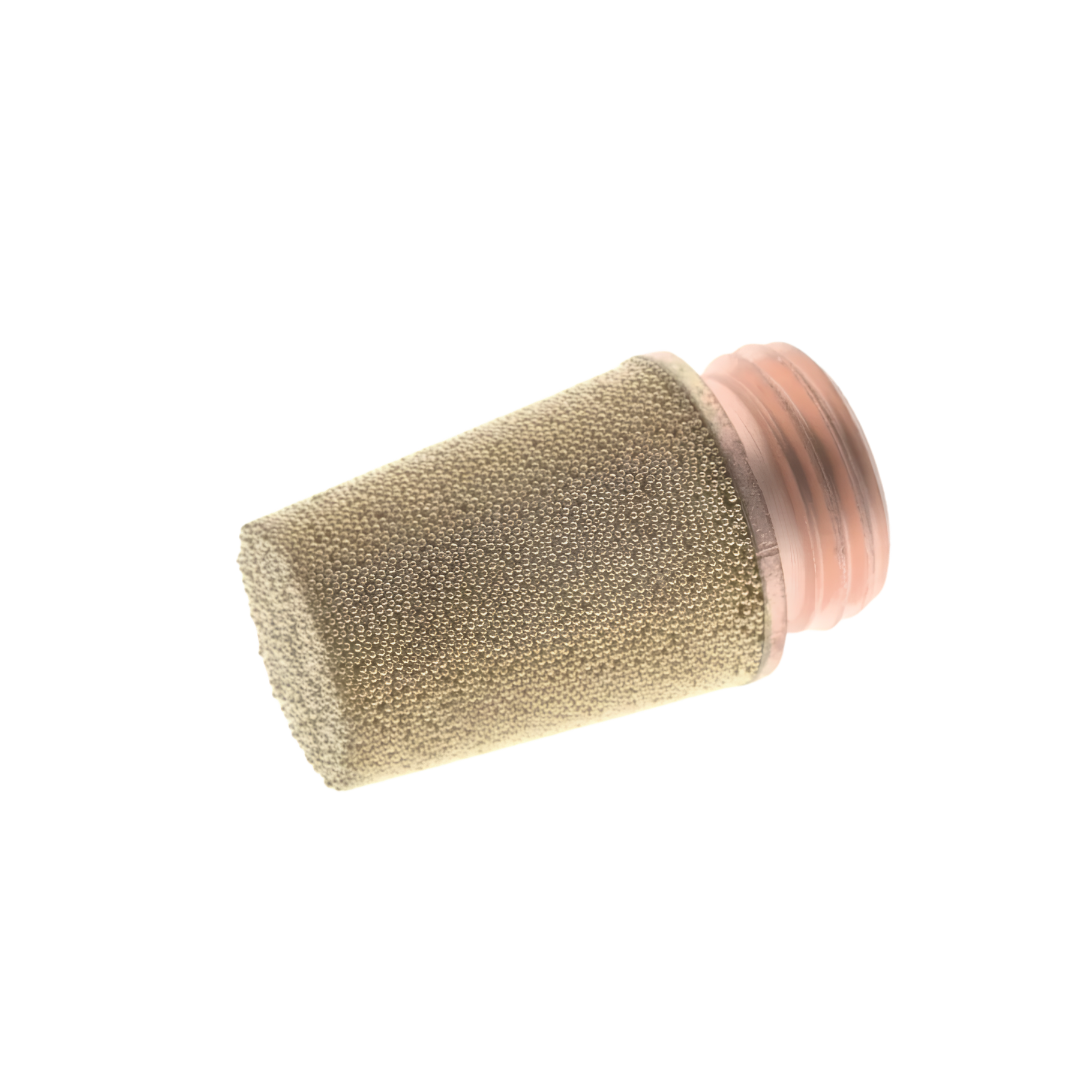

The AIGNEP 7000 Series Long Pneumatic Silencer — Ref. 0703000004, 3/8" BSPT Thread is made of sintered bronze with a high-resistance metal body, designed to efficiently reduce noise generated by compressed air discharge in industrial valves, cylinders, and pneumatic systems. Its long design offers a larger filtration surface and better acoustic reduction compared to short models, with minimal pressure drop. In addition to noise reduction, it retains particles and contaminants in the exhaust, protecting the environment and system components. Direct installation into 3/8" BSPT threaded exhaust ports. Manufactured in Italy by AIGNEP.

Long vs. Short — When to use the long silencer?

• Long silencer (this model): Larger sintered bronze surface — better acoustic reduction. Ideal for higher flow valves or environments with more stringent noise requirements.
• Short silencer: Smaller size for confined spaces. Standard acoustic reduction for lower flow applications.

Applications

• Exhaust ports in solenoid valves and directional valves (01V, 08VS Series, etc.)
• Single and double-acting pneumatic cylinders
• Pneumatic machinery and industrial process equipment
• Production lines and automation where acoustic pollution reduction is required
• Any pneumatic system with a 3/8" BSPT threaded exhaust port

Technical Specifications

• Reference: AIGNEP 0703000004
• Series: AIGNEP 7000
• Type: Long pneumatic silencer
• Thread: 3/8" BSPT
• Filter element material: Sintered bronze (porous)
• Body: High-resistance metal
• Function: Discharge noise reduction + particle retention in exhaust
• Installation: Direct on threaded exhaust port (no special tools required)
• Country of manufacture: Italy
• Brand: Aignep

Other Common Names

This product is also known as: pneumatic exhaust silencer, 3/8" pneumatic muffler, pneumatic sintered bronze silencer, pneumatic exhaust filter, pneumatic silencer 3/8" BSPT, exhaust silencer pneumatic, sintered bronze muffler pneumatic, or AIGNEP 7000 series pneumatic silencer.
