FRL EVO 3/4" MAINTENANCE UNIT - AIGNEP

The AIGNEP EVO line Maintenance Unit features an advanced compressed air treatment system designed to deliver exceptional air quality, crucial for sensitive and demanding applications. This comprehensive system, with a 3/4-inch connection, comprises a series of filtration and control stages, ensuring superior purity and optimized performance.

AIGNEP's EVO line surpasses common maintenance units thanks to its advanced features, which guarantee superior compressed air treatment:

• Advanced Modularity: Facilitates flexible configuration and simplified maintenance, with greater robustness and lower weight.
• High Precision: Offers more precise and reliable air regulation compared to standard systems.
• Optimized Flow Rates: Internal design that maximizes airflow, improving system efficiency.
• Superior Multi-Stage Filtration: Includes coalescing filtration (down to 0.001 microns) and activated carbon (less than 0.005 mg/m³ of oil vapor), removing ultrafine particles, aerosols, and odors that ordinary units cannot.
• Next Generation Materials: Construction with advanced technopolymers and metal threads for greater durability and resistance in industrial environments.
• Additional Features: Such as the "silicon free" design, integrated pressure gauge and easy cup detachment, improving usability and maintenance.
• ATEX Certification: Allows its use in potentially explosive environments, expanding its range of application.

Available configurations:

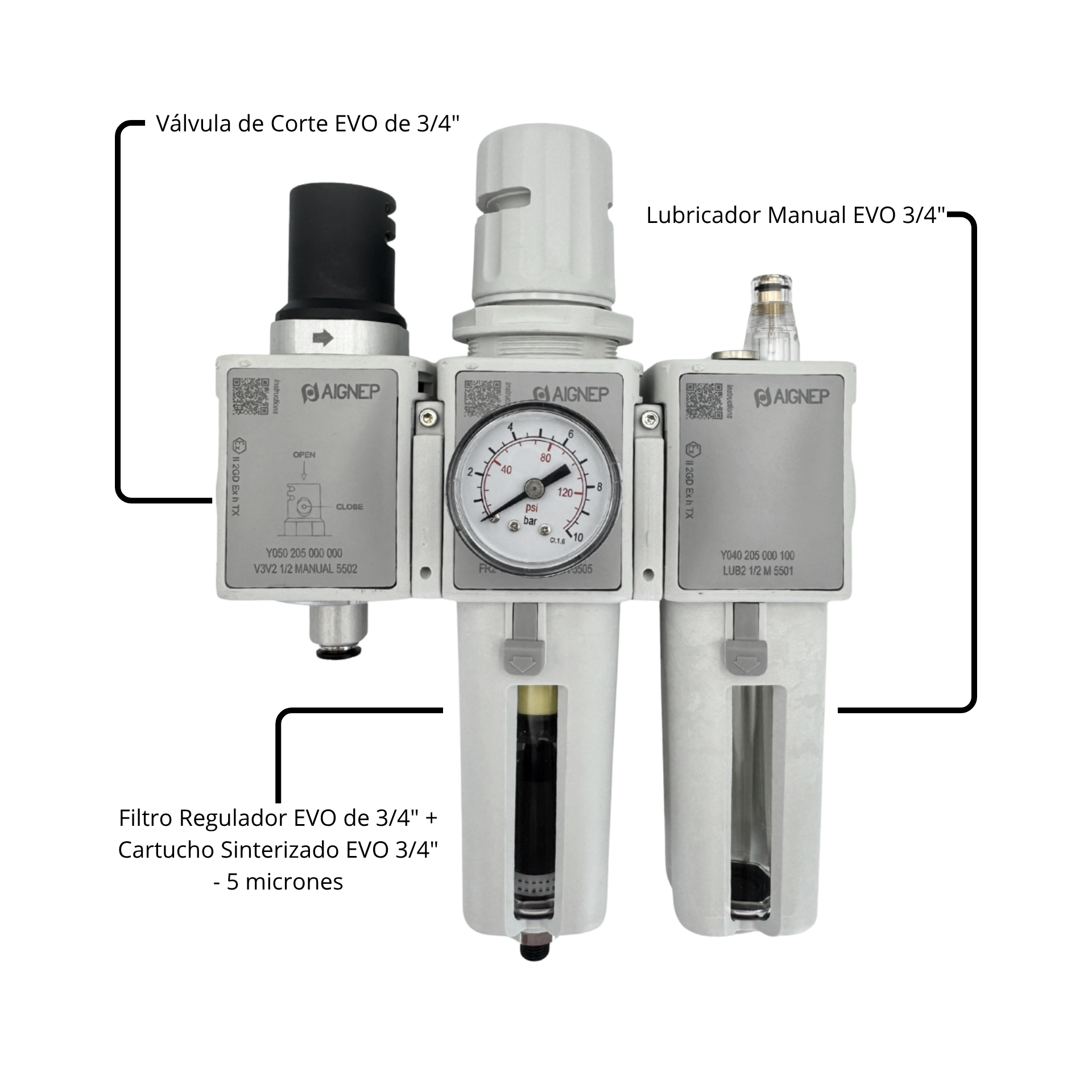

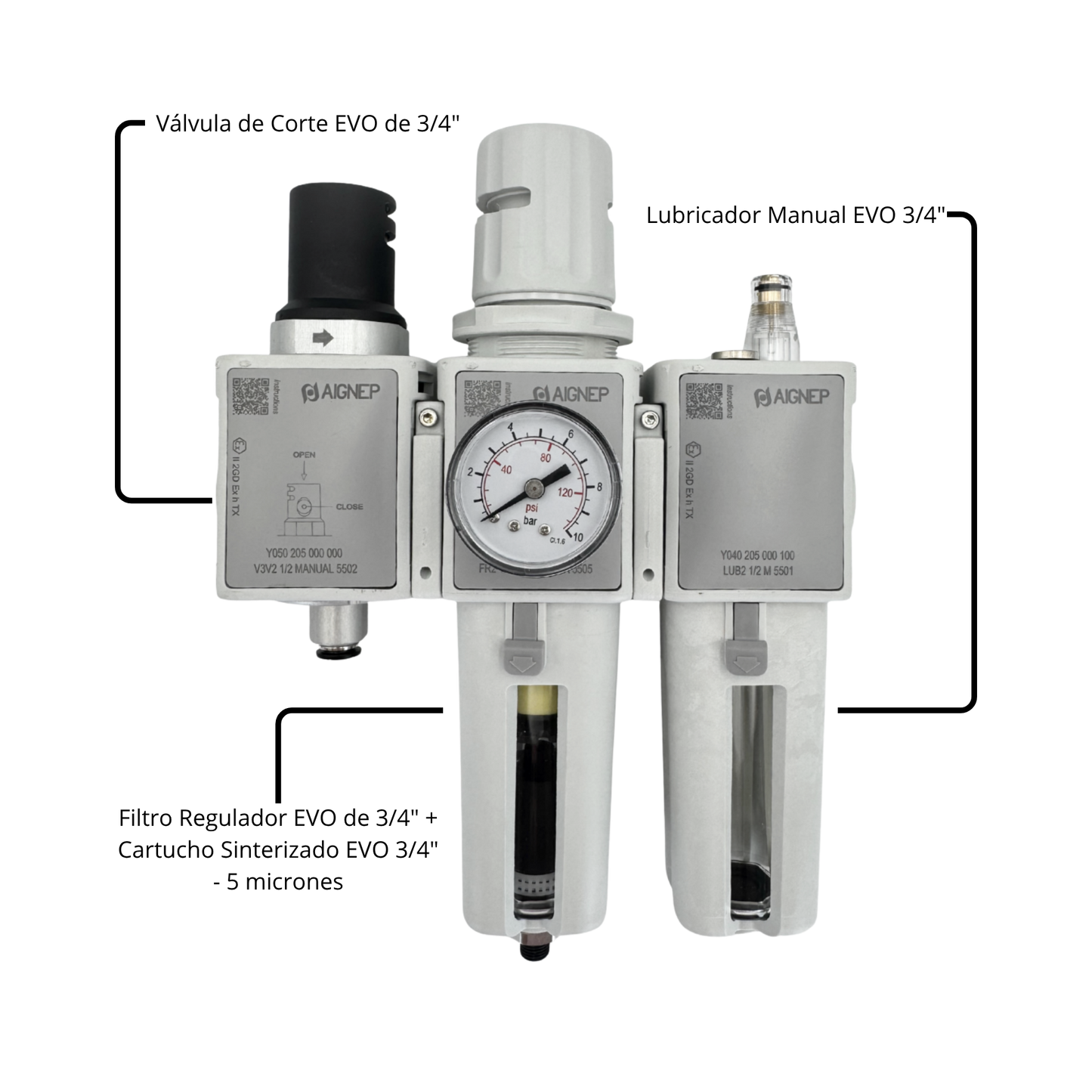

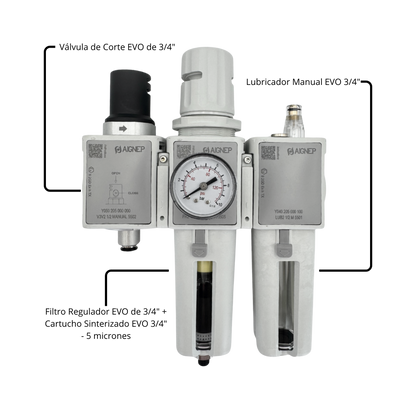

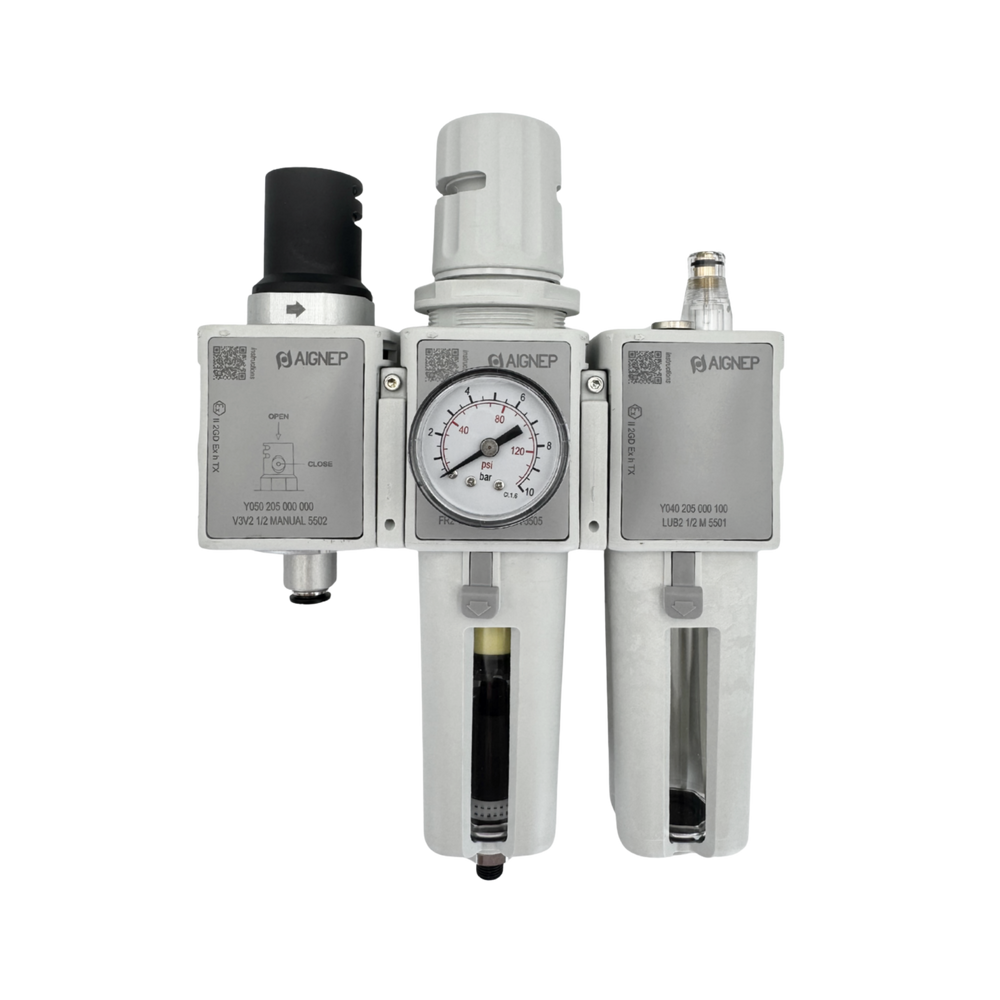

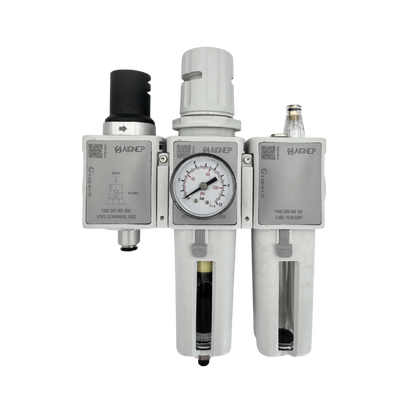

Configuration 1:

• 3/4" EVO Shut-Off Valve: Y050307000000
• FRL3 Wall Mounting Kit: Y501300000000
• 3/4" EVO Regulator Filter: Y030307132002
• 3/4" - 5 micron Sintered Cartridge: FIL043Y3805SC
• Manual Lubricator 3/4": Y040307000100
• AIGNEP 1/8 Pressure Gauge: MAN01N2060000

Configuration 2:

• 3/4" EVO Shut-Off Valve: Y050307000000
• FRL3 Wall Mounting Kit: Y501300000000
• 3/4" EVO Regulator Filter: Y030307132002
• 3/4" - 20 micron Sintered Cartridge: FIL043Y3820SC
• Manual Lubricator 3/4": Y040307000100
• AIGNEP 1/8 Pressure Gauge: MAN01N2060000

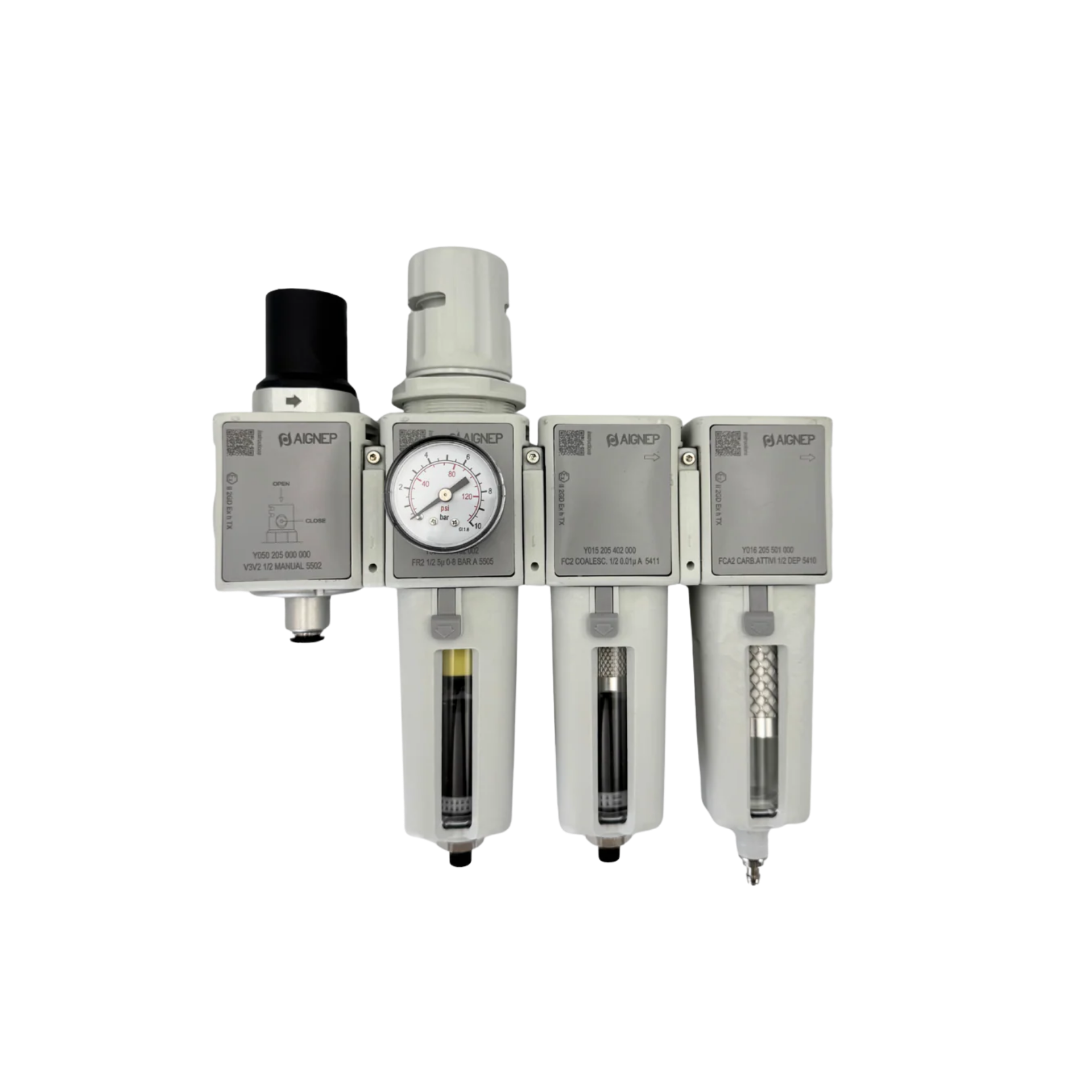

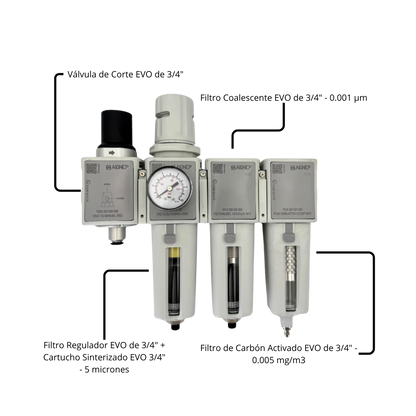

Configuration 3:

• 3/4" EVO Shut-Off Valve: Y050307000000
• FRL3 Wall Mounting Kit: Y501300000000
• 3/4" EVO Regulator Filter: Y030307132002
• FRL3 Joint Assembly Kit: Y502300000000
• EVO Coalescing Filter 3/4" - 0.001 µm: Y015307402000
• EVO Activated Carbon Filter 3/4" - 0.005 mg/m3: Y016307501000
• AIGNEP 1/8 Pressure Gauge: MAN01N2060000
