5/2-Way Bistable Pneumatic Actuated Valve | Aignep

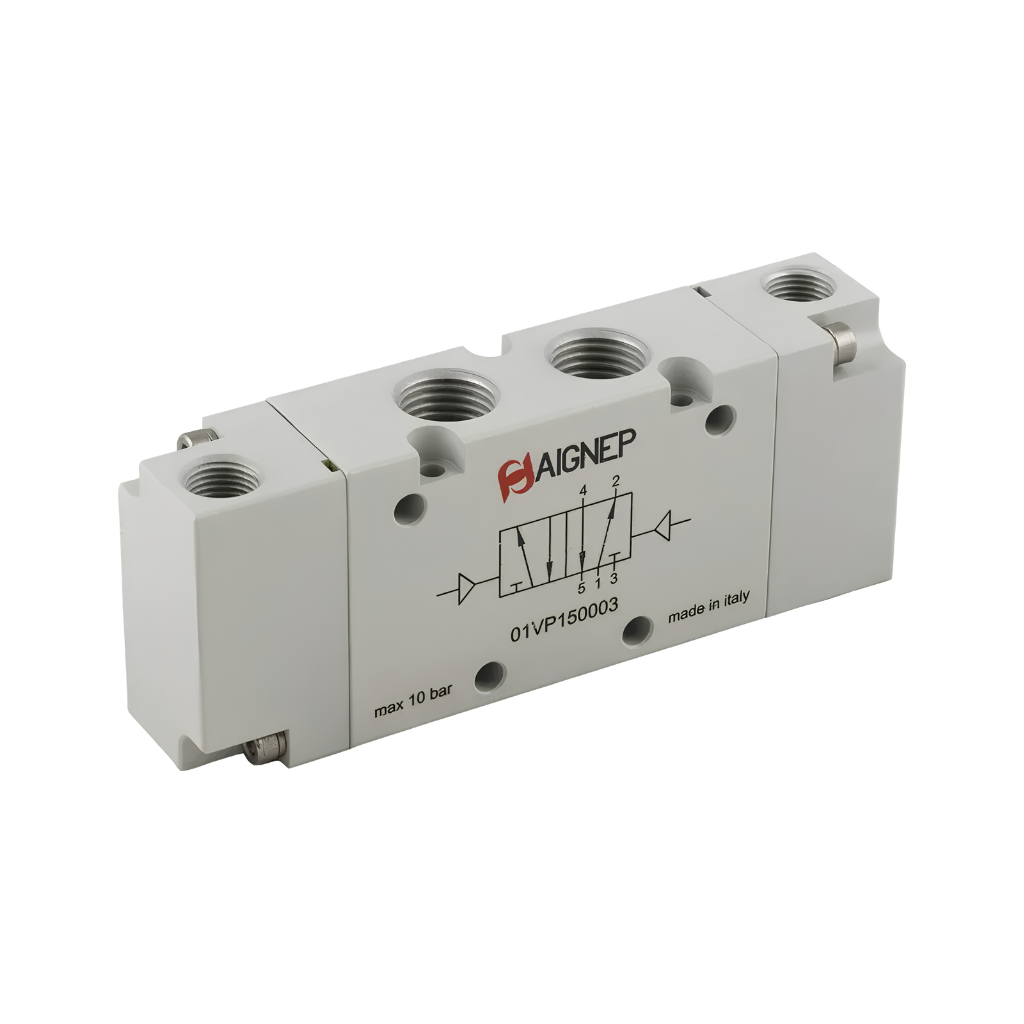

The AIGNEP 5/2-Way 1/4" BSPP Bistable Pneumatically Operated Valve is a directional valve from the 01V Series, operated by a compressed air signal (pneumatic pilot) in a bistable configuration, which maintains its last switching position without needing a continuous signal, acting as a pneumatic memory. Unlike the monostable version (01VP050003, spring return), this bistable valve requires a second pneumatic pilot signal to change position, ensuring that the actuator remains in its current position if the signal is lost. It is compatible with standard 01V Series manifold mounting. It features an anodized aluminum body, nickel-plated spool, and NBR seals. It operates up to 10 bar. Made in Italy by AIGNEP.

Bistable vs. Monostable Pneumatic — When to Use Each?

• Bistable pneumatic (this valve): Maintains position without continuous signal. Requires a pneumatic pulse at each end to change state. Ideal when the actuator must remain in position upon signal loss.
• Monostable pneumatic (01VP050003): Returns to original position by spring action when the pilot signal ceases. Ideal when a safe return to the resting position is required in case of failure.

Applications

• Control of double-acting pneumatic cylinders with position memory via pneumatic piloting.
• Pneumatic circuits without PLC or electricity at the control point.
• ATEX zones or explosive environments where electrical wiring is not feasible and position memory is required.
• Pneumatic clamping systems that must maintain position upon signal loss.
• Cascades and pure pneumatic logic circuits with state memory.
• Mounting on 01V Series manifold for pneumatic control units.

Technical Specifications

• Series: AIGNEP 01V
• Type: Pneumatically operated valve (pneumatic pilot), bistable
• Configuration: 5/2-way, 2-position bistable
• Pneumatic Connection: 1/4" BSPP
• Actuation: Pneumatic pilot (air signal at both ends)
• Operation: Bistable — maintains position without continuous signal
• Working Pressure: Up to 10 bar
• Body: Anodized aluminum
• Spool: Nickel-plated aluminum
• Seals: NBR
• Compatible with: AIGNEP 01V Series manifold
• Country of Manufacture: Italy
• Brand: Aignep

Equivalent to

• SMC VT307-5G1-02-F (5/2 double pneumatic pilot bistable, G1/4")
• Camozzi Series 358, 5/2 double pneumatic pilot bistable, 1/4"
• Bürkert Type 6213, 5/2 double pneumatic pilot G1/4"
• ASCO Numatics Series 327/328, 5/2 double pneumatic pilot G1/4"
• Parker/Pneutronics Series B, 5/2 double pneumatic pilot G1/4"
• Univer Series BE/AC, 5/2 double pneumatic pilot G1/4"

Other Common Names

This product is also known as: air-piloted bistable pneumatic valve, 5/2 bistable pneumatic pilot valve, solenoid-free pneumatic memory valve, 5/2 bistable pneumatic pilot valve, bistable pneumatically operated valve 5/2, air piloted bistable valve 5/2 way, pneumatic memory valve 5/2, or AIGNEP 01V bistable pneumatic pilot valve.
