3/2 Push Button Valve, Monostable NC, Spring Return | Aignep

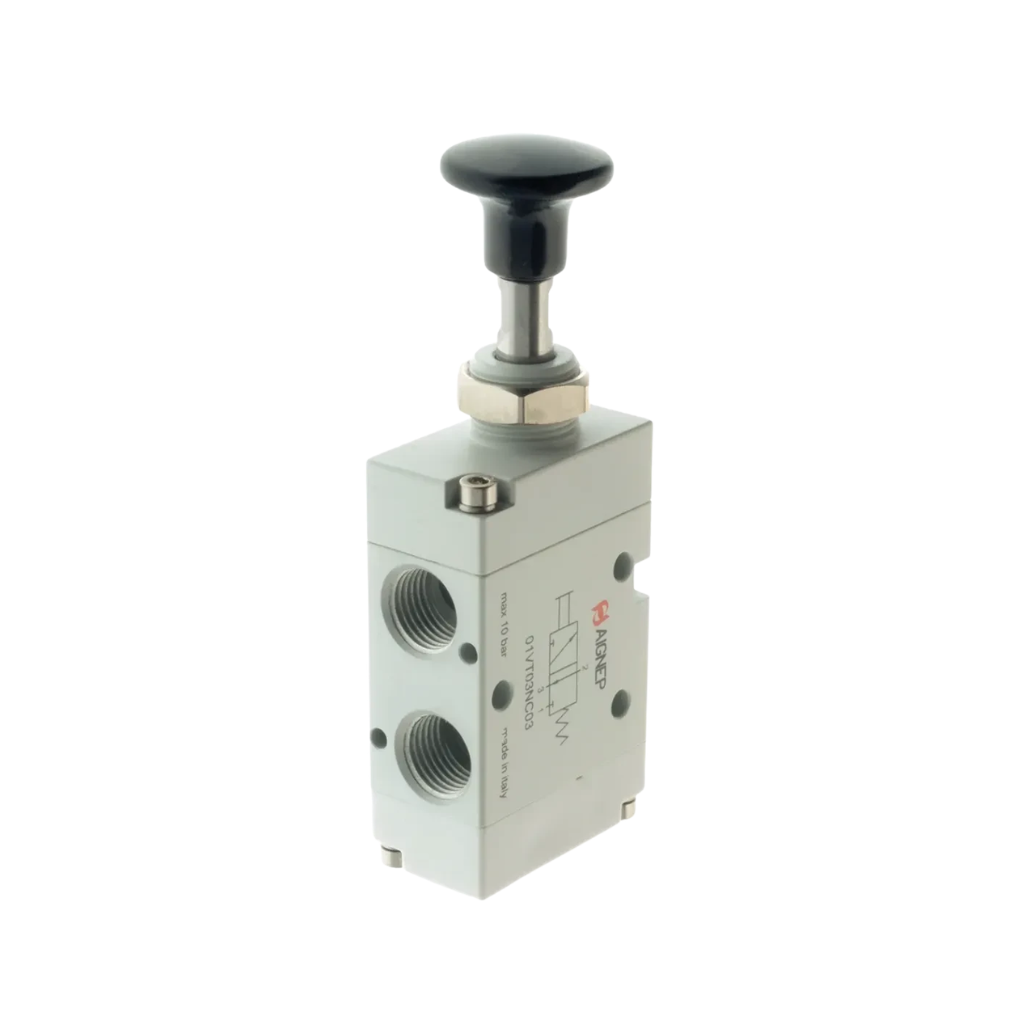

The AIGNEP 01VT03NC03 Pull Valve, 3/2-Way Monostable NC with Spring Return is a manual compressed air control valve actuated by a pull handle, designed to manually, quickly, and safely activate or deactivate pneumatic circuits. In the rest position, it is Normally Closed (NC) — the air passage is blocked. Pulling the handle opens the air passage to the circuit. Upon release, it automatically returns to the closed position by spring. Unlike the mechanical tappet valve (01VV), this one is activated by direct human action (manual pull handle). 1/4" BSPP connection. Manufactured in Italy by AIGNEP.

Types of Manual Actuation Series 01V — Which to choose?

• Pull Handle (01VT — this valve): Actuation by pulling a handle. Direct manual operation by the operator. Ideal for control panels and workstations
• Mechanical Tappet (01VV): Actuation by physical contact of a part or mechanism. Ideal for automatic limit switches
• Solenoid (01VS): Electrical actuation by PLC. Ideal for automation without human intervention

Principle of Operation

• Rest Position (NC): Air passage blocked — the pneumatic circuit is deactivated
• When pulling the handle: The air passage to the pneumatic circuit opens
• When releasing the handle: Automatic return to closed position by spring
• Monostable: Requires continuous operator action to keep the passage open

Applications

• Manual control of industrial pneumatic circuits from control panels
• Manual activation of pneumatic actuators in machinery and production lines
• Workstations where the operator manually controls air flow
• Pneumatic safety systems with manual emergency control
• Maintenance and testing of industrial pneumatic circuits

Technical Specifications

• Reference: AIGNEP 01VT03NC03
• Series: AIGNEP 01V
• Type: Manual pull-actuated valve, monostable
• Configuration: 3/2-way, 2-position, Normally Closed (NC)
• Pneumatic connection: 1/4" BSPP
• Actuation: Manual by pull handle
• Return: By spring (automatic upon releasing the handle)
• Country of manufacture: Italy
• Brand: AIGNEP

Equivalent to

• SMC VM131-01-30 (manual pull, 3/2 NC, G1/4")
• Festo VHER-H-B43-G14 (manual pull, 3/2 NC)
• Camozzi Series 304 manual pull, 3/2 NC, 1/4"
• Norgren M/57 series manual pull 3/2 G1/4"
• Parker PVM series manual pull G1/4"
• Univer AE series manual pull 3/2 G1/4"

Other Common Names

This product is also known as: pneumatic pull valve, manual pneumatic pull valve, 3/2 NC manual pull valve, NC pneumatic manual control valve, pull type manual valve pneumatic, manual pull valve 3/2 NC pneumatic, hand operated valve pull type or AIGNEP 01VT03NC03 manual valve.
